PRODUCT SHORT DESCRIPTION

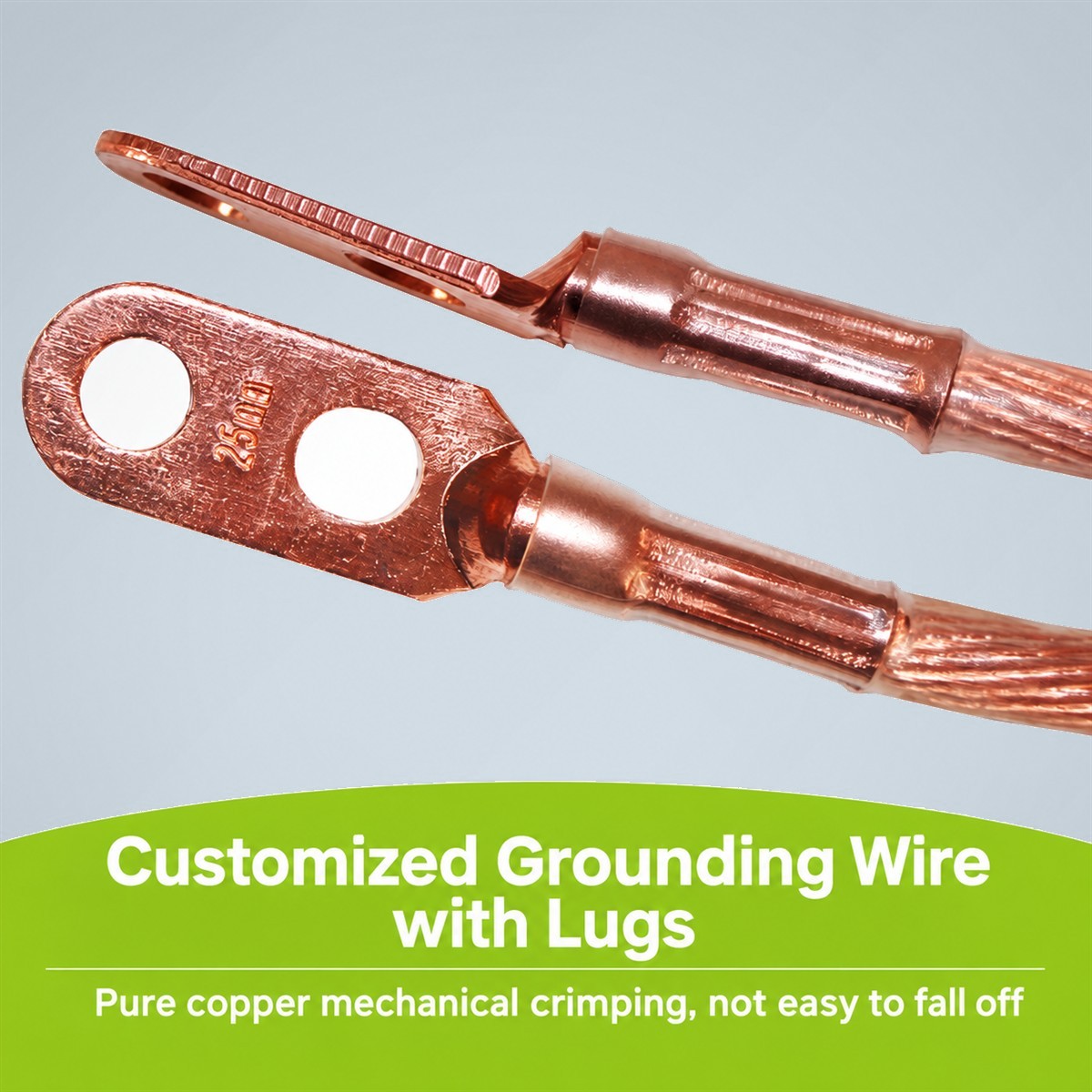

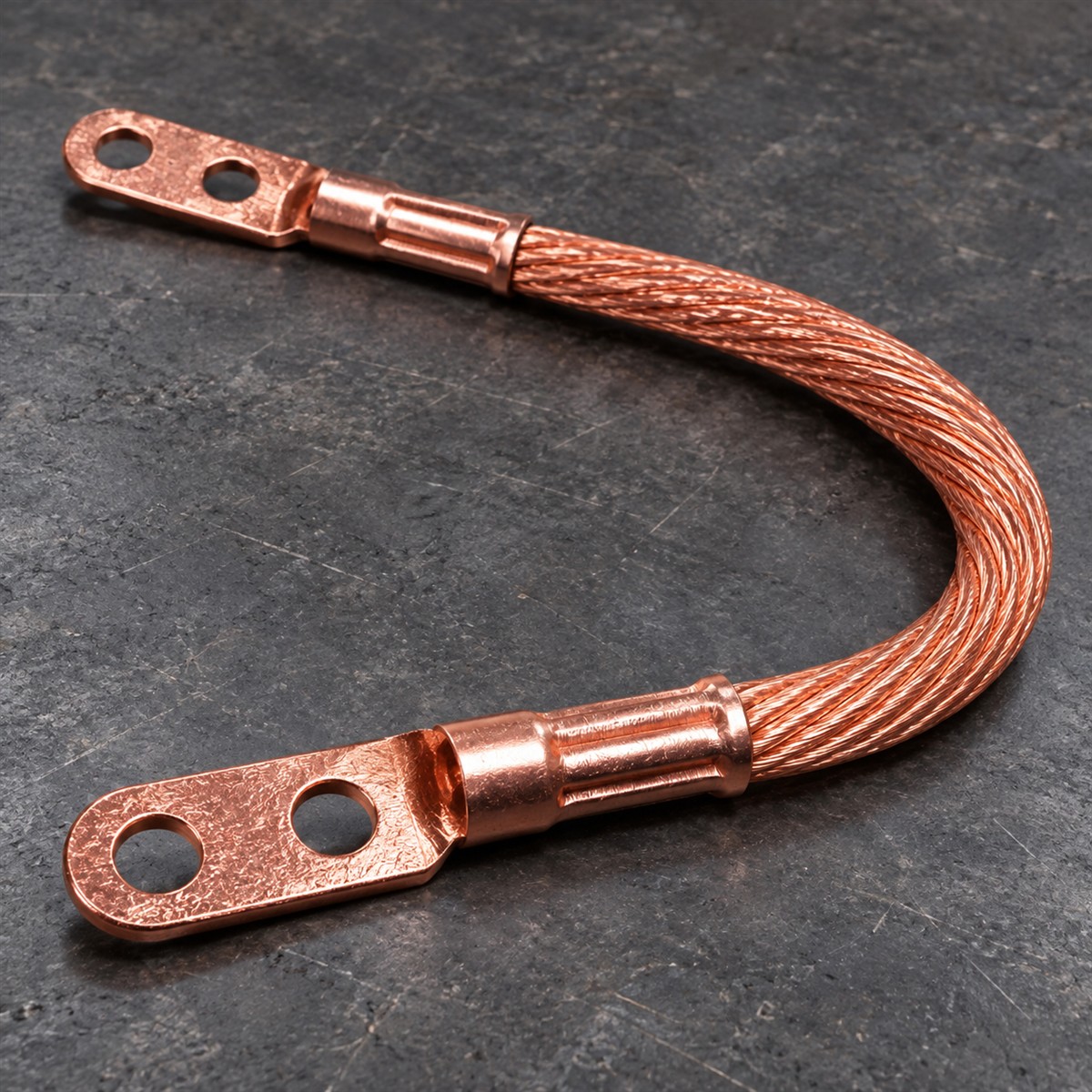

Pure-copper flexible grounding cable, 16/25mm², with pre-crimped copper lugs for HV and spot-welder earth use. Highly flexible, low-resistance, tinned and oxidation-resistant.

PRODUCT DESCRIPTION

The pure-copper flexible grounding wire is a soft, multi-strand copper cable pre-terminated with copper lugs for use as a bonding jumper, equipment grounding lead or temporary earth connection. The fine-strand construction makes the cable highly flexible and easy to route, while the high-purity copper delivers the low resistance needed to carry fault and leakage current safely. Cables are supplied in 16 mm² and 25 mm² cross-sections with crimped copper lugs (cable noses) ready for bolt connection, and are available with tinned strands and a luminous option for improved visibility in low-light distribution rooms.

Key Features

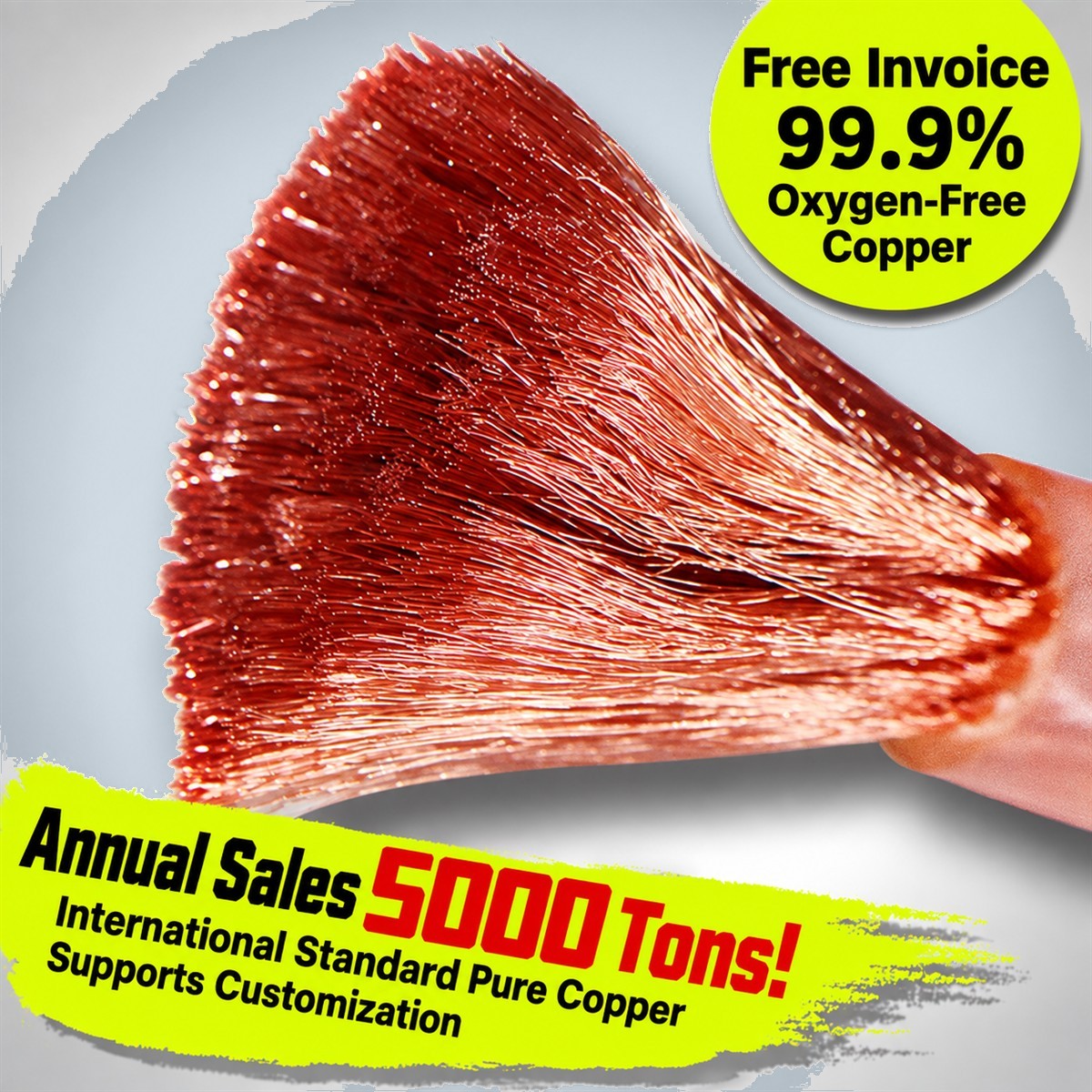

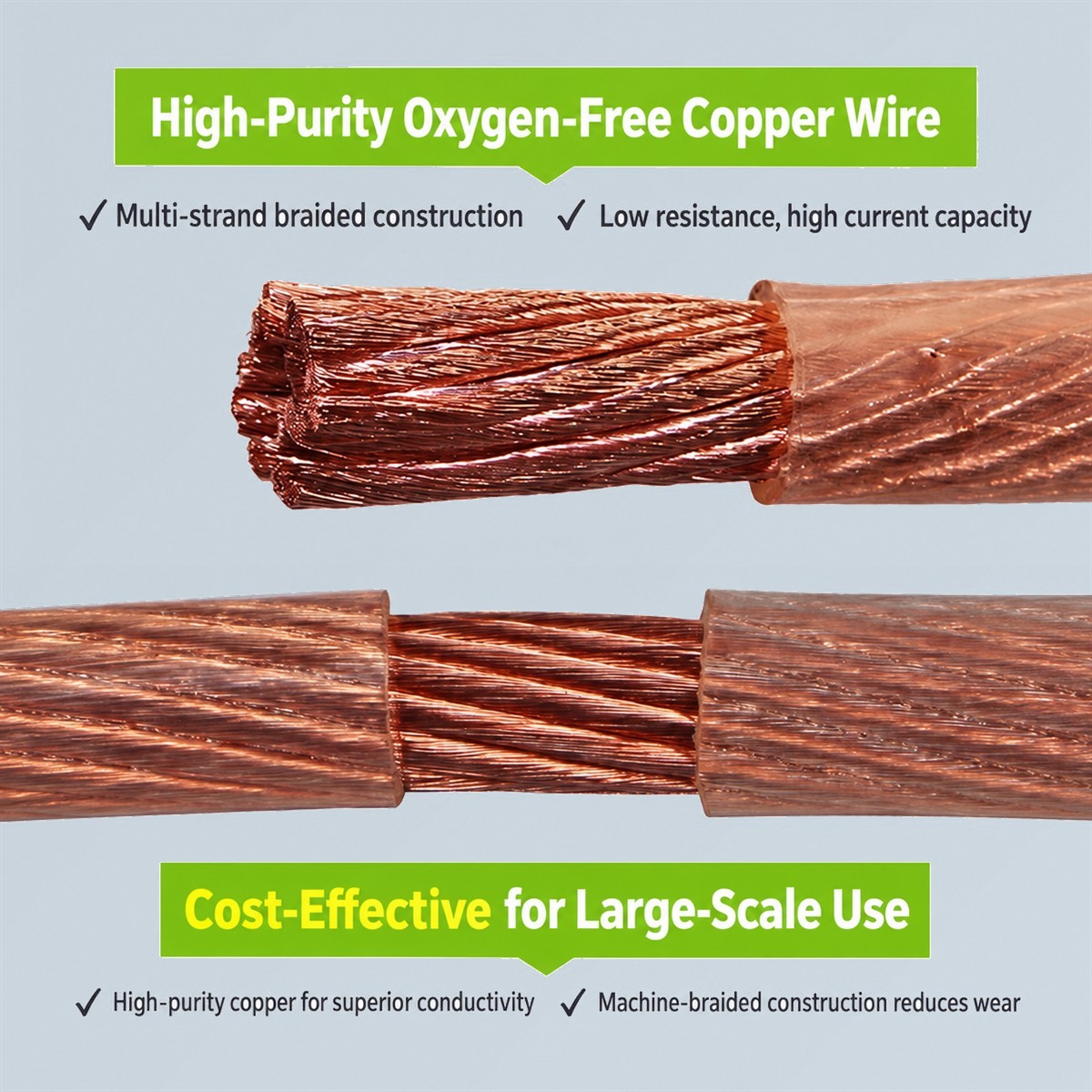

• High-Purity Copper — Soft annealed copper strands provide maximum conductivity and flexibility.
• Pre-Crimped Lugs — Copper cable noses are factory crimped for a gas-tight, ready-to-bolt connection.
• Highly Flexible — Fine-strand construction bends easily around panels and equipment.
• Two Cross-Sections — 16 mm² and 25 mm² cover equipment bonding through HV grounding duty.
• Low Resistance — Safely carries fault and leakage current to earth, reducing touch voltage.
• Tinned / Luminous Options — Tinned strands resist oxidation; luminous jacket aids visibility in dark rooms.
• Versatile Use — Suitable for panel grounding, spot welders, generators and temporary earths.
• Durable Insulation — Color-coded PVC or transparent sheath identifies the grounding conductor.

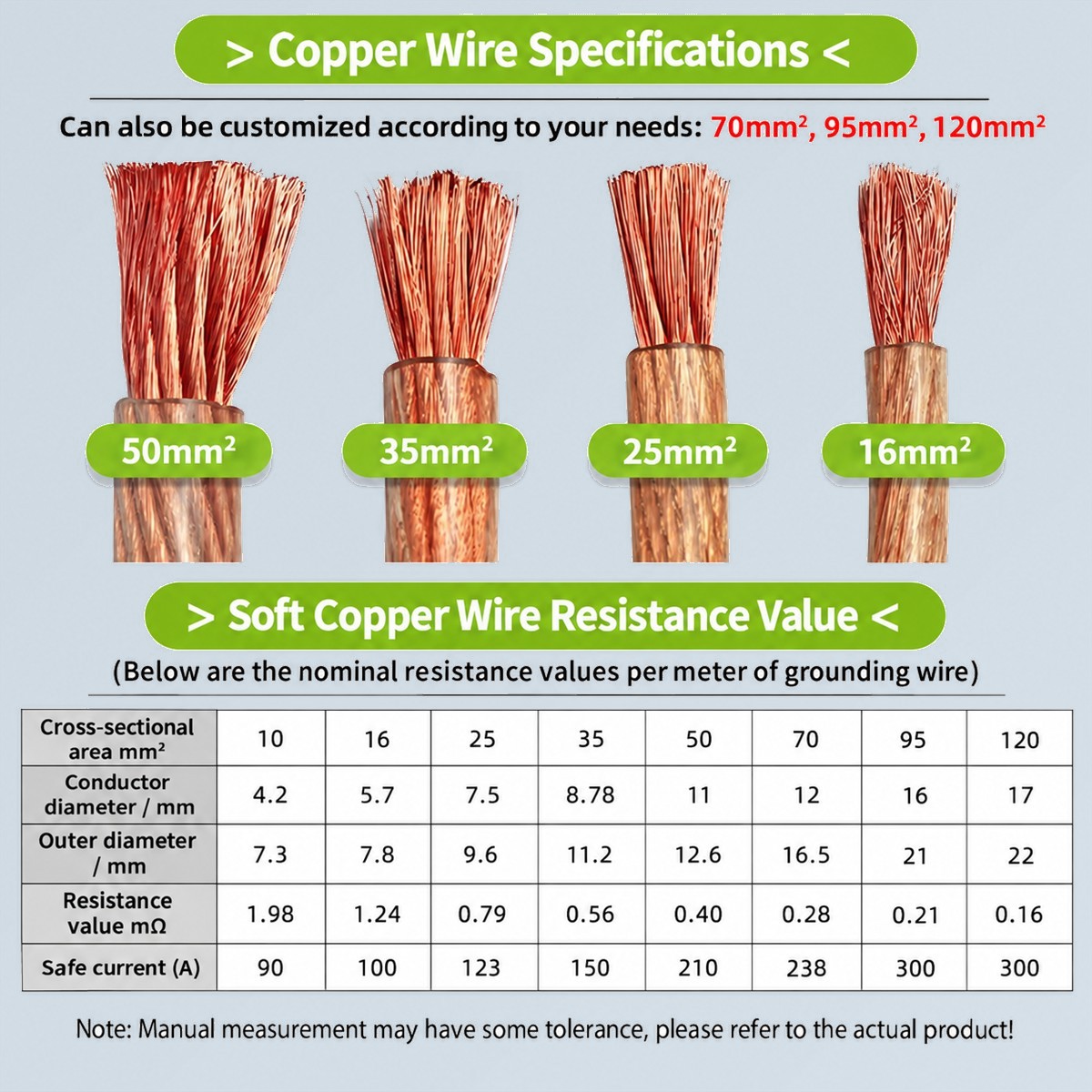

Specifications
• Conductor: Soft annealed multi-strand copper
• Cross-section: 16 mm² / 25 mm²
• Terminations: Factory-crimped copper lugs
• Finish: Bare or tinned; luminous option
• Sheath: Color-coded / transparent PVC
• Function: Equipment bonding and grounding
• Custom length: Cut to order per meter

Applications Equipment and panel grounding in distribution rooms, generator and spot-welder earth leads, bonding jumpers and temporary maintenance grounding.
