This series covers a full range of insulators for high-voltage lines and distribution scenarios, available in composite and porcelain materials, for conductor support, electrical insulation and overvoltage protection. Suitable for 10kV to 220kV voltage levels, with strong weatherability and low operation & maintenance cost.

Product Range

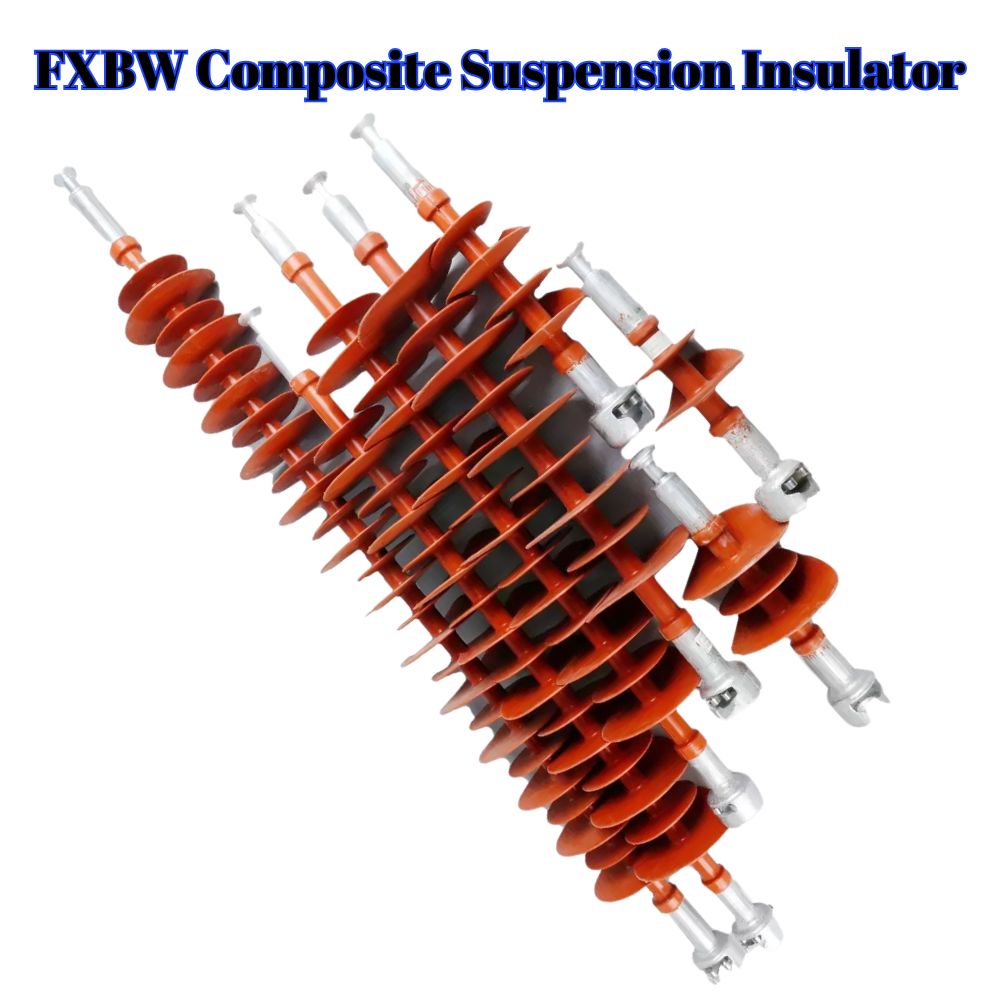

• FXBW Long Rod Composite Suspension Insulator (10kV–220kV) — Suspends conductors and provides electrical insulation for HV overhead transmission lines, replacing traditional porcelain insulators. Silicone rubber sheds offer strong hydrophobicity and excellent pollution flashover resistance, with light weight, high tensile strength, breakage resistance, easy installation and a long maintenance-free cycle.

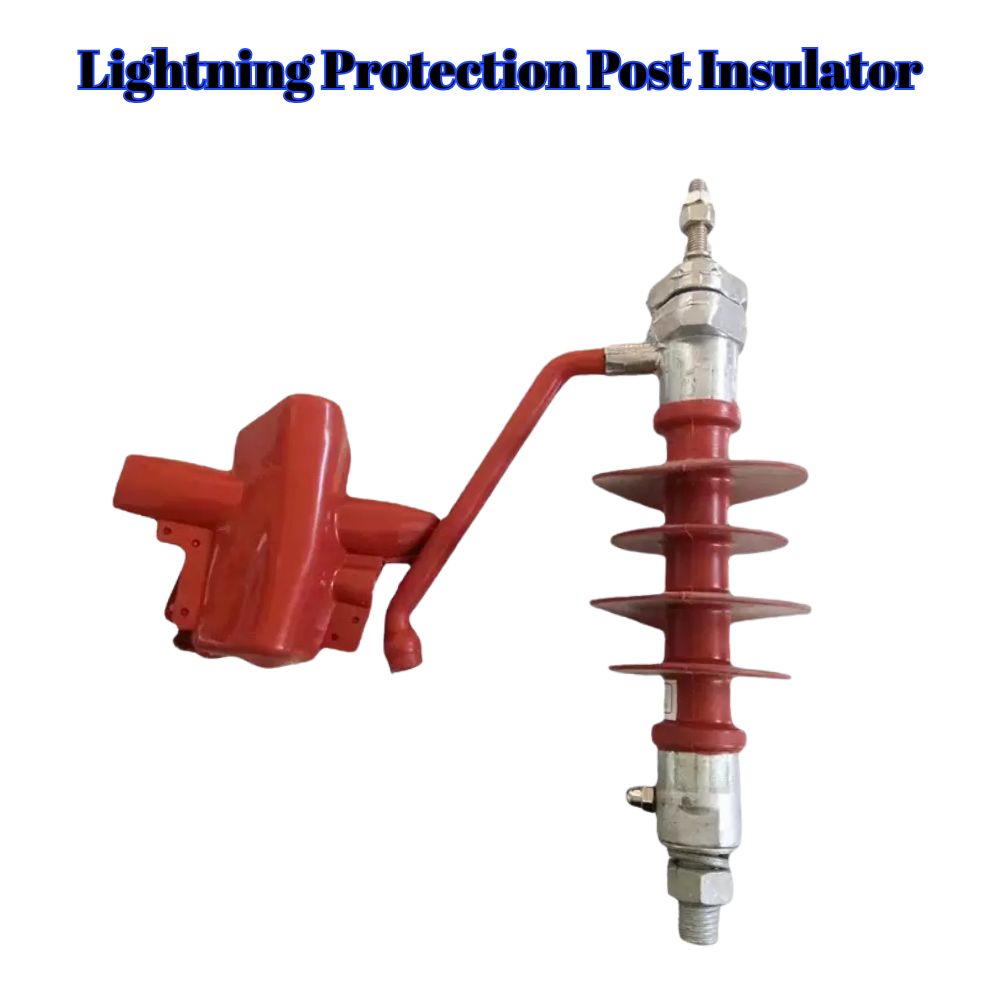

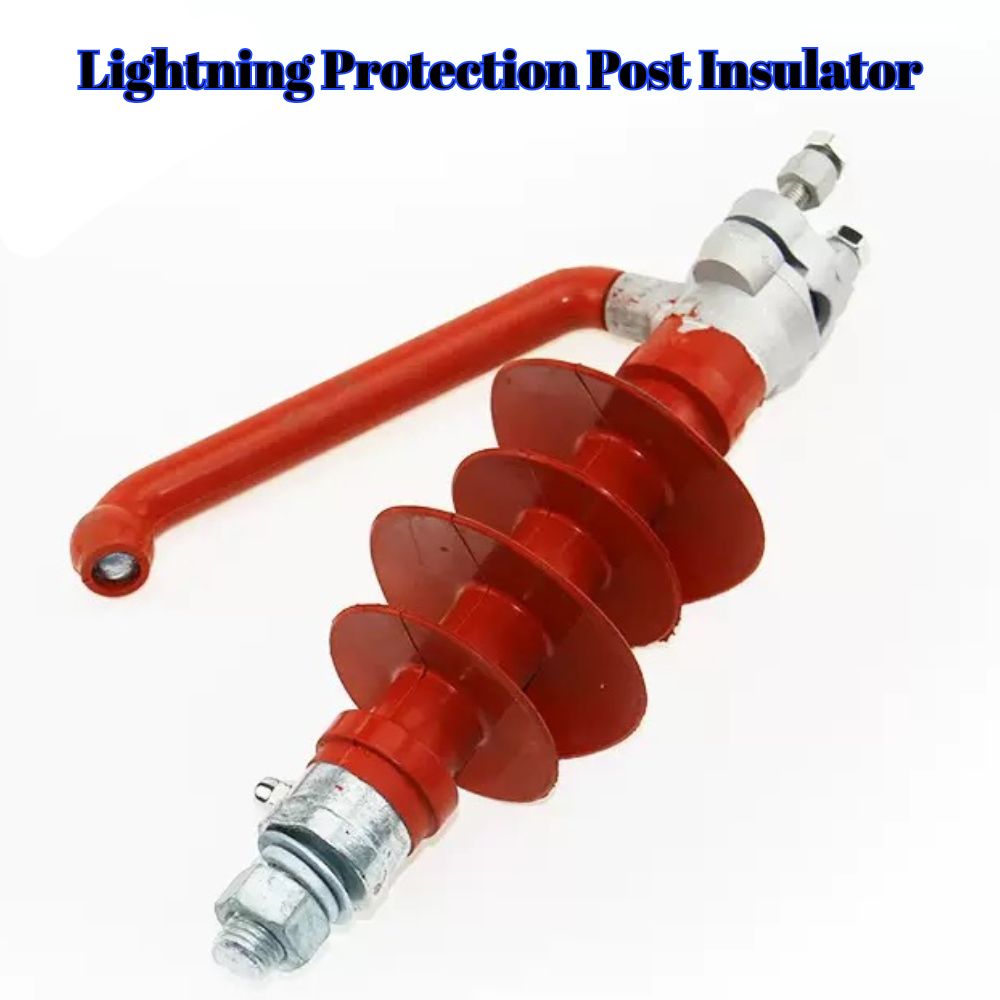

• Lightning Protection Post Insulator — Integrates line support insulation with lightning overvoltage protection, mainly for 10kV distribution lines and pole-mounted equipment. The integrated structure reduces lightning trip-out rates and eliminates the need for additional surge arresters, lowering overall cost.

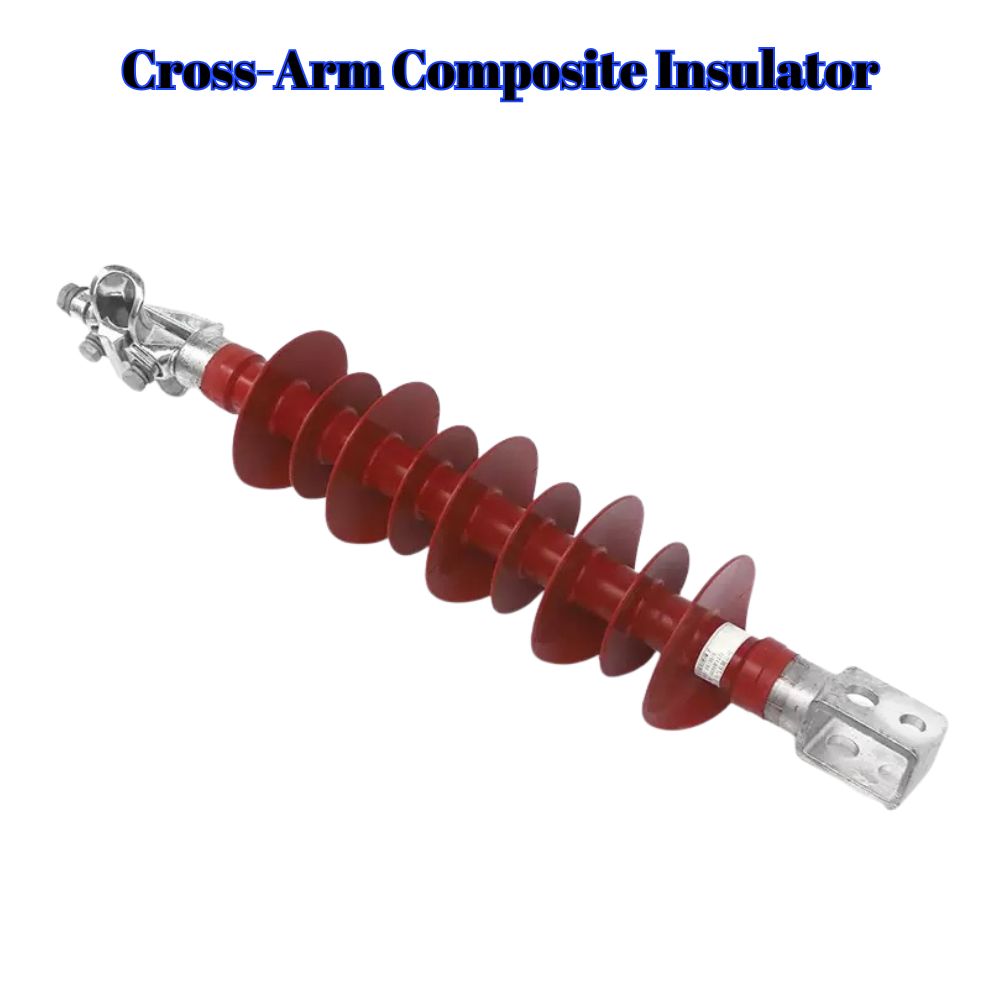

• Cross-Arm Composite Insulator — Replaces the traditional “steel cross-arm + insulator” combination for 10kV distribution lines. One-piece composite structure delivers good insulation, light weight and corrosion resistance, with bird damage and electricity theft prevention benefits.
• HV Post Insulator — For live part support and electrical insulation in switchgears, distribution installations and outdoor substation equipment. High mechanical strength and stable insulation, available in porcelain and composite for indoor and outdoor use.

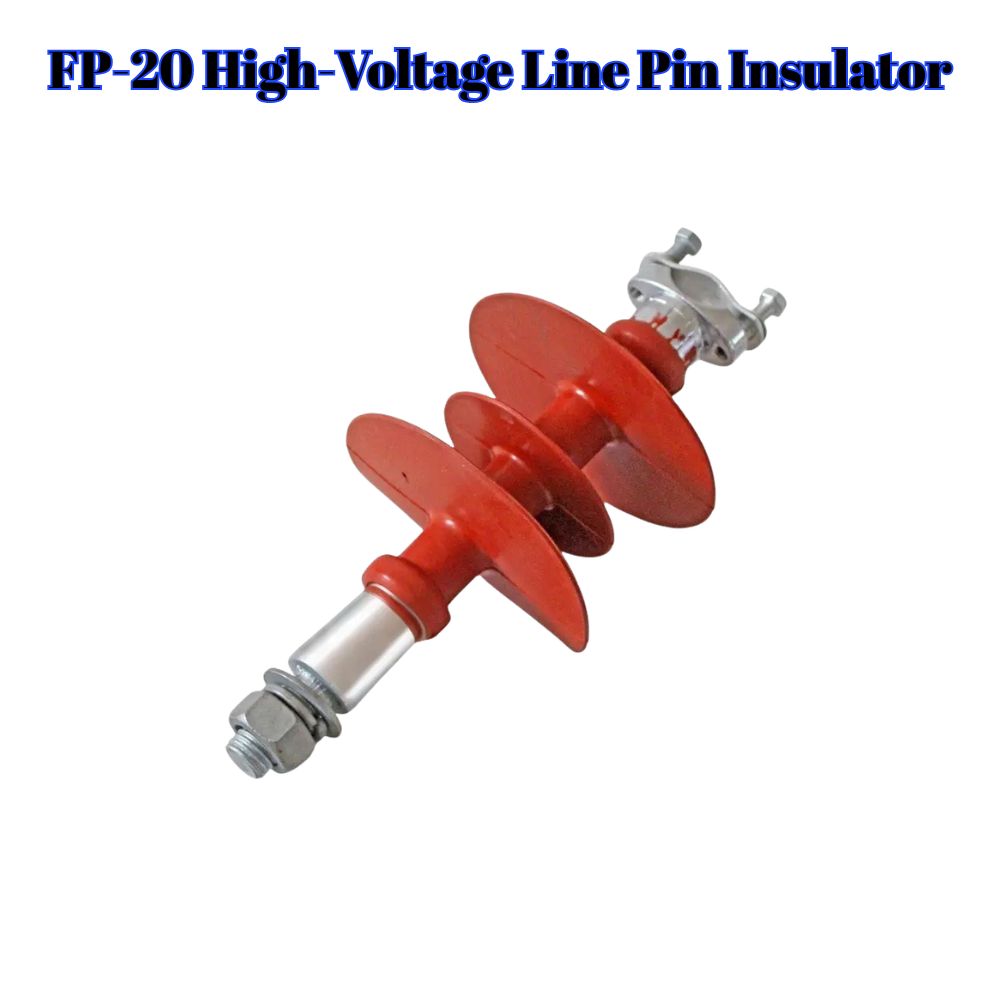

• FP-20 HV Line Pin Insulator — For 10–20kV overhead distribution lines to fix conductors with pin-type mounting. Mature porcelain structure, high versatility and mechanical strength, ideal for rural and urban power grid renovation.

For more voltage ratings, structural specifications and customization options, please contact us.
