PRODUCT SHORT DESCRIPTION
Portable 27.5kV railway catenary earthing set with 25mm² copper cable and double-tongue clamp for electrified-railway contact networks. Fast-acting, carry-on, compliant with railway grounding standards.

PRODUCT DESCRIPTION

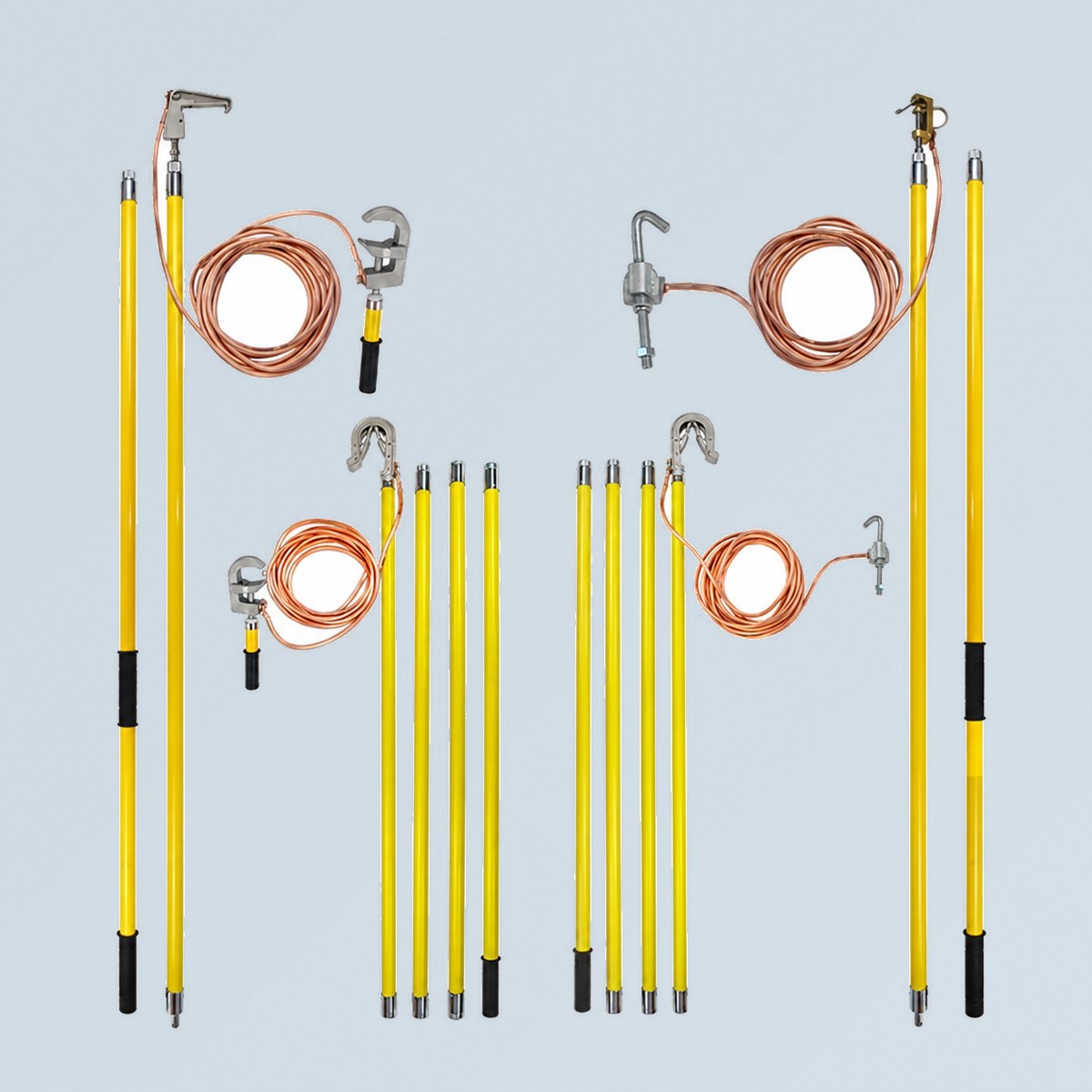

The 27.5kV railway catenary grounding wire set is engineered for maintenance crews working on electrified railway contact networks (catenary). It provides a portable short-circuit and earthing path that protects workers against accidental energization and residual charge on the 25kV traction supply. The set includes a high-voltage insulating operating rod, a double-tongue (dual-jaw) contact-wire clamp that grips the messenger or contact wire securely, a 25mm² flexible copper cable and a robust earth clamp. It is widely used by railway electrification teams, traction substations and catenary maintenance depots.

Key Features
• Railway-Specific Design — Rated for the 25kV (27.5kV max) single-phase AC traction supply used on electrified lines.
• Double-Tongue Clamp — Dual-jaw head grips both contact wire and messenger wire without damaging the conductor.
• Heavy-Duty Copper Cable — 25mm² flexible multi-strand copper withstands the high short-circuit currents of catenary systems.
• Quick Earthing — Carry-on design lets a trained operator ground the work section rapidly from the track side.
• Insulated Operating Rod — Long high-voltage rod maintains safe clearance during connection and removal.
• Corrosion Resistant — Tinned copper and plated clamps resist the damp, polluted railway environment.
• Visible Secure Lock — Spring-loaded jaws and lock nuts give a clearly reliable connection.
• Railway Compliant — Built to railway grounding and IEC 61230 / TB/T requirements for portable earthing equipment.

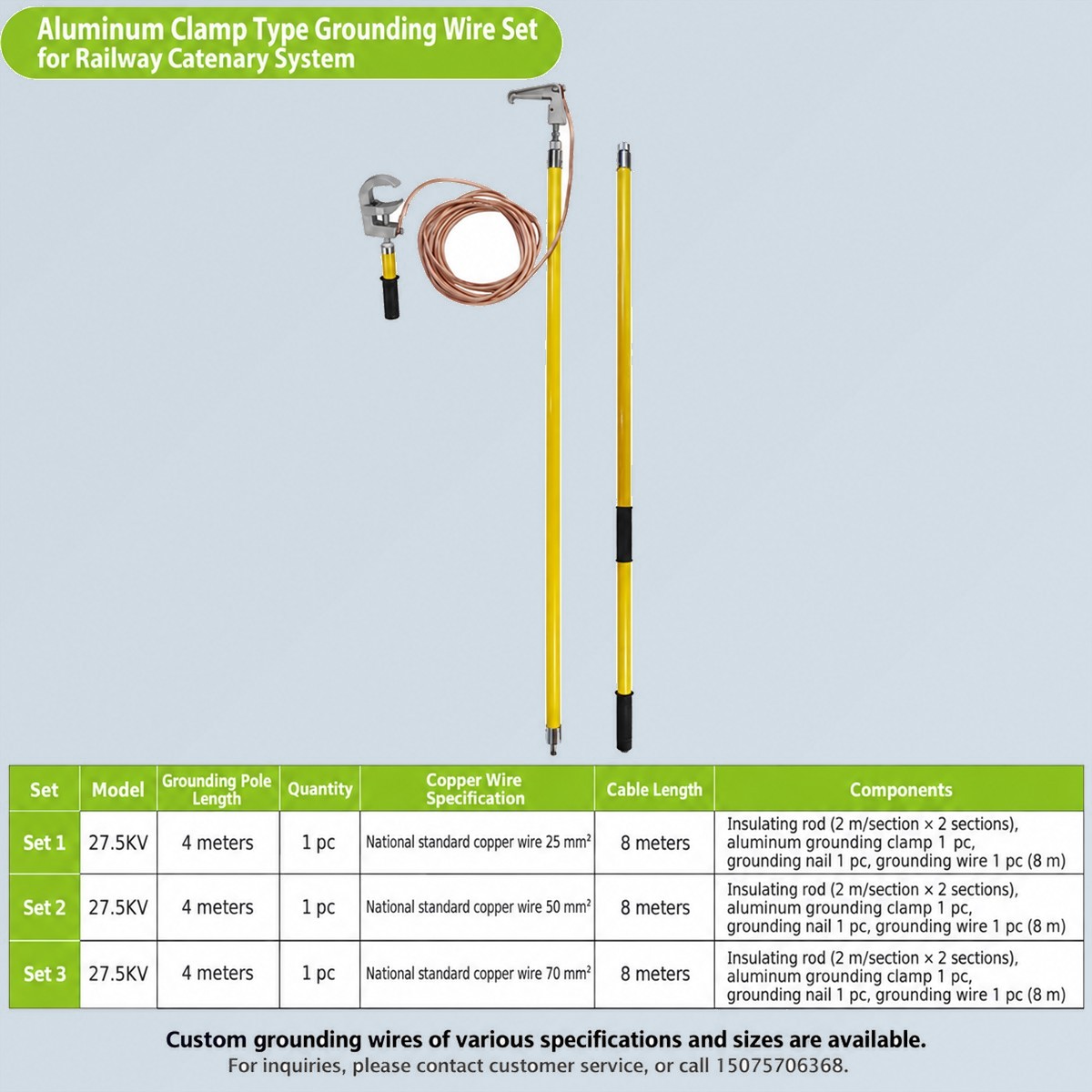

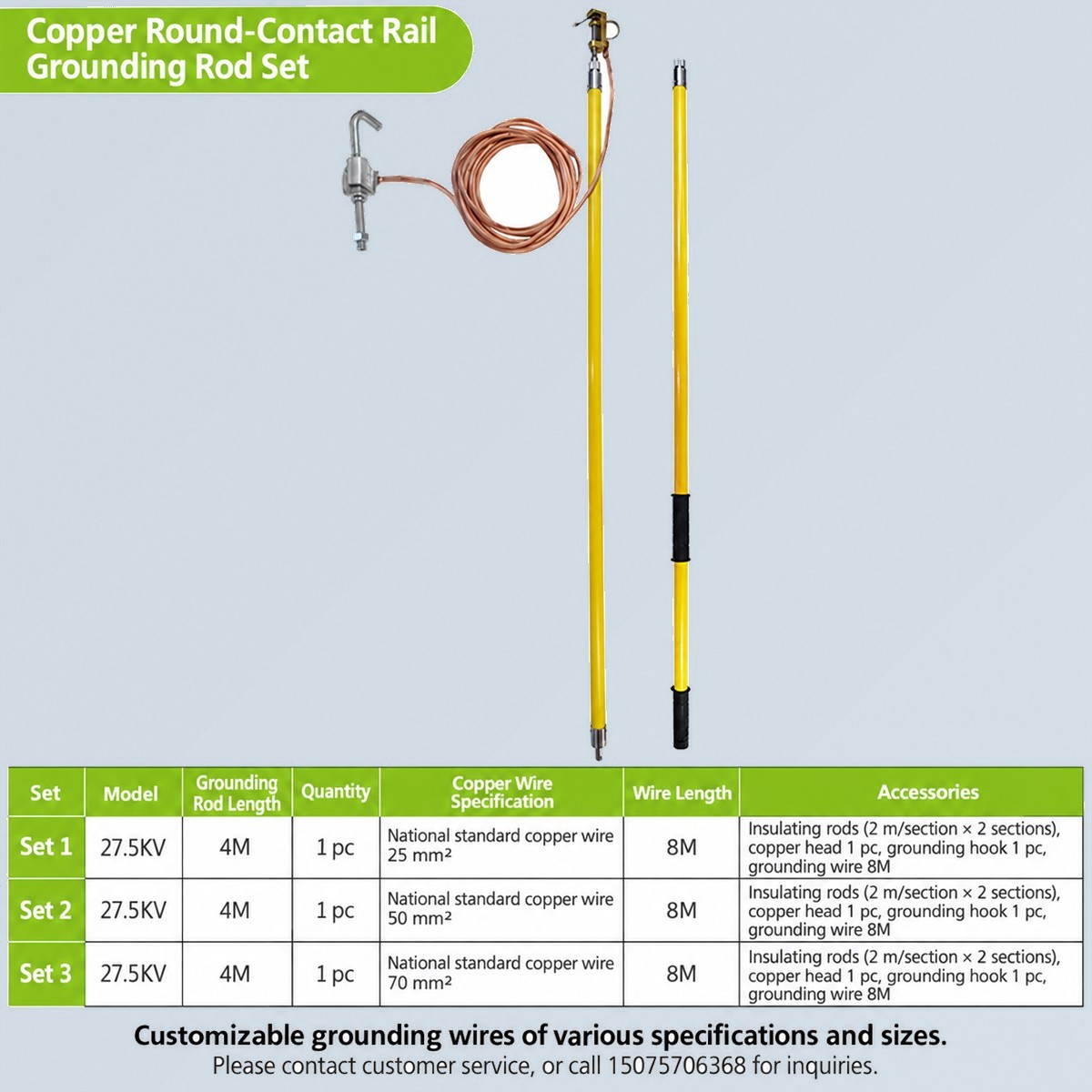

Specifications
• Rated voltage: 27.5 kV (25 kV traction system)
• Cable cross-section: 25 mm² flexible copper
• Line clamp: Double-tongue / dual-jaw contact-wire clamp

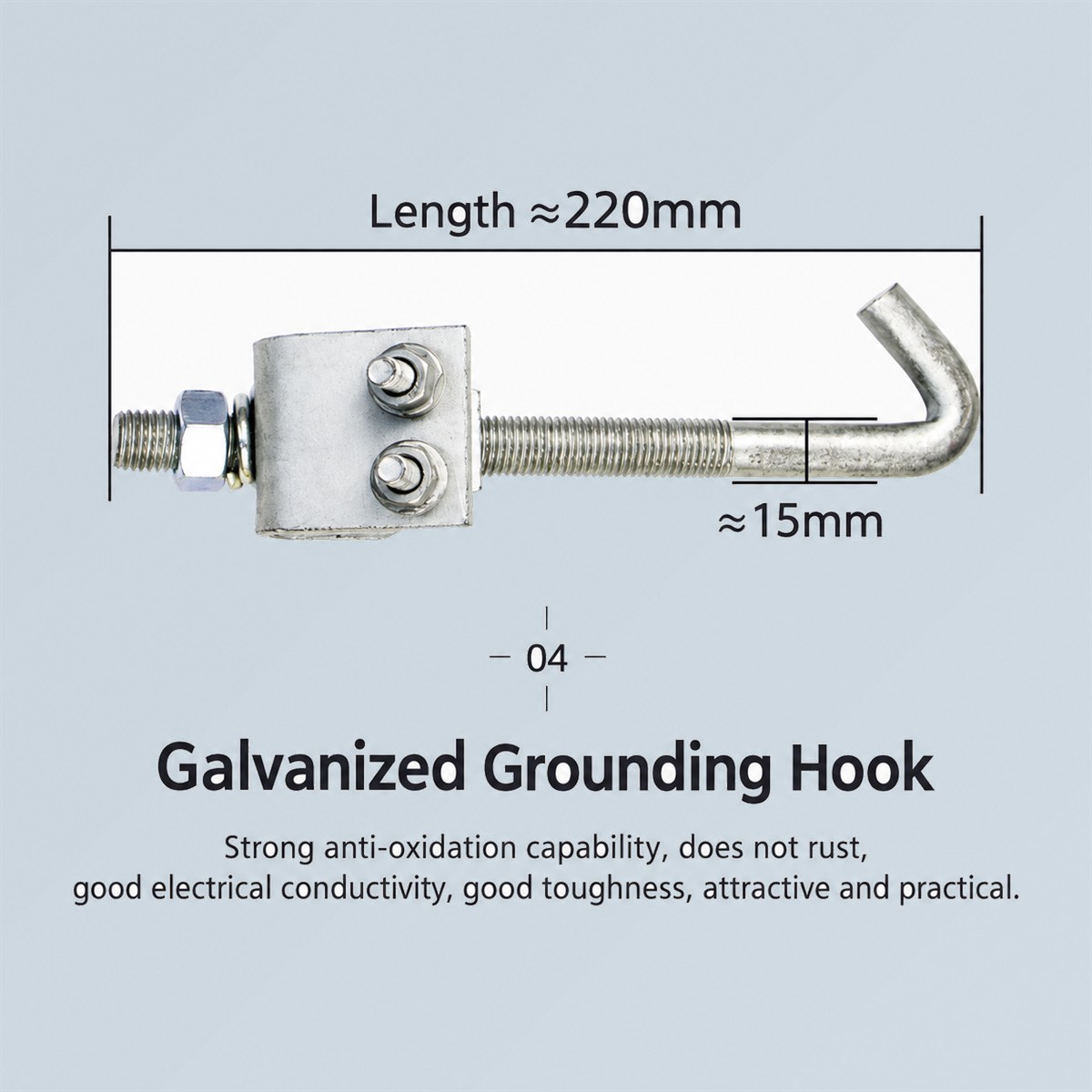

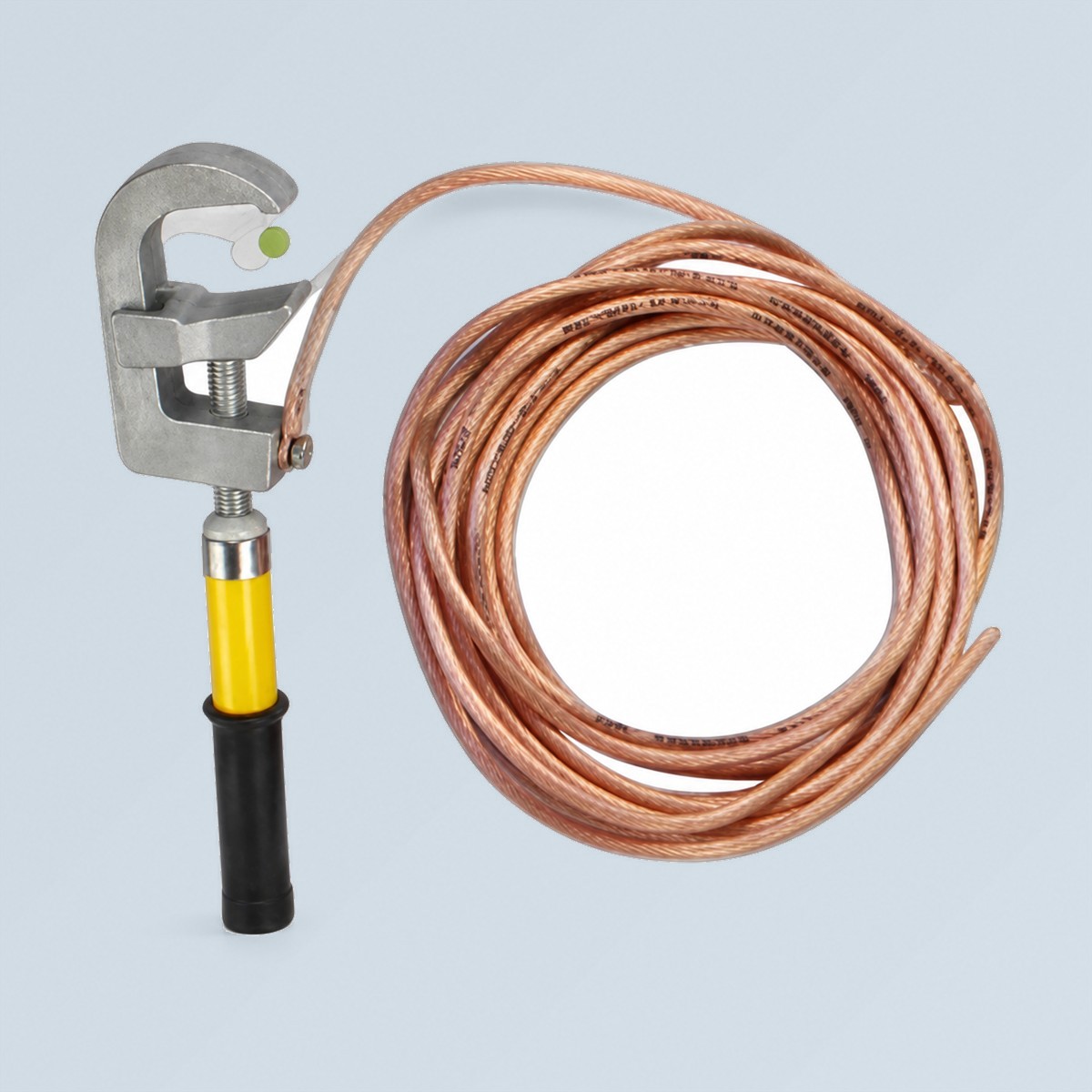

• Earth clamp: Screw / C-type earth clamp
• Rod: HV fiberglass insulating operating rod
• Application: Electrified railway catenary
• Standard: IEC 61230 / railway TB/T standards

Applications Maintenance and inspection of electrified railway contact wires, messenger wires, section insulators, turnouts and traction-substation outgoing feeders.
