PRODUCT SHORT DESCRIPTION

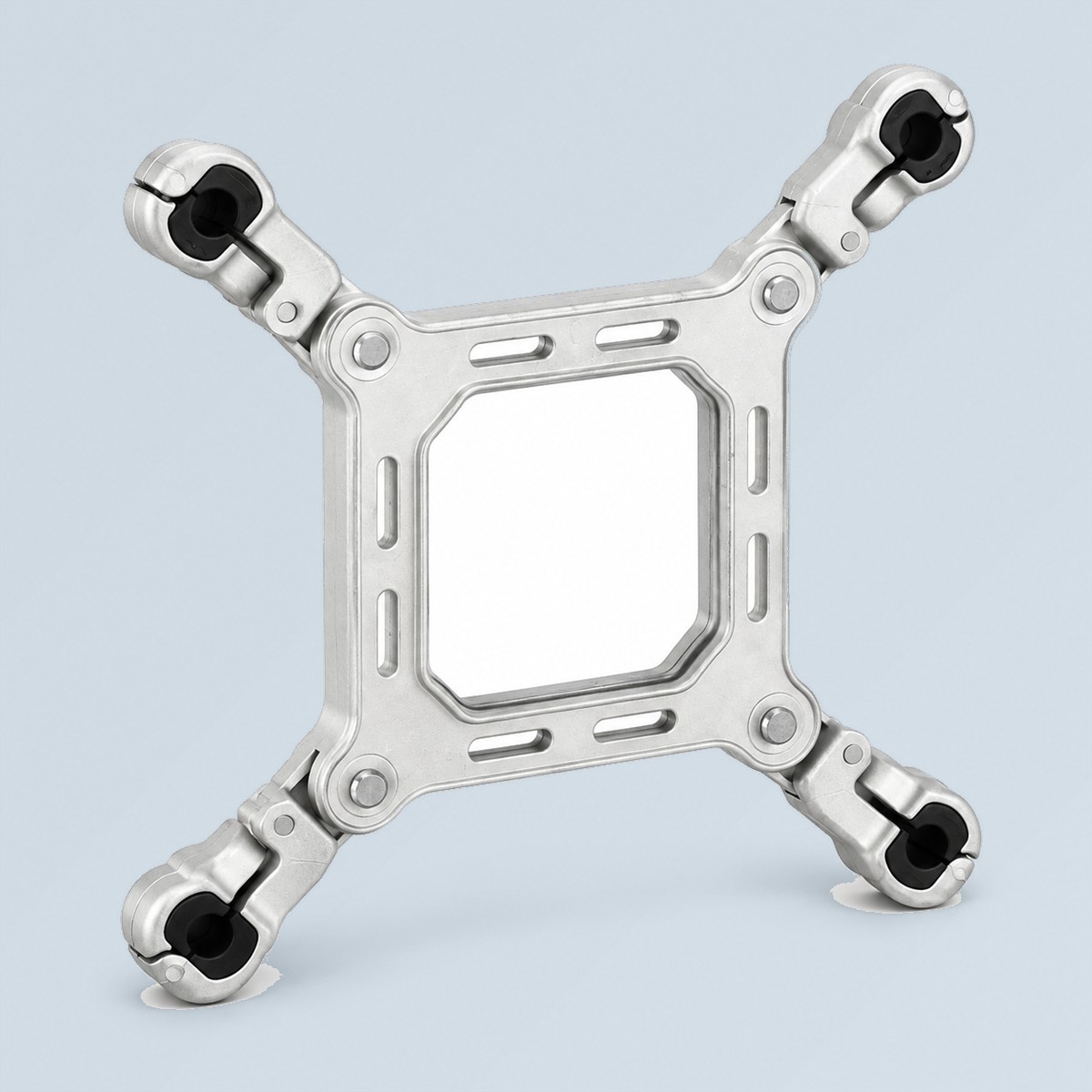

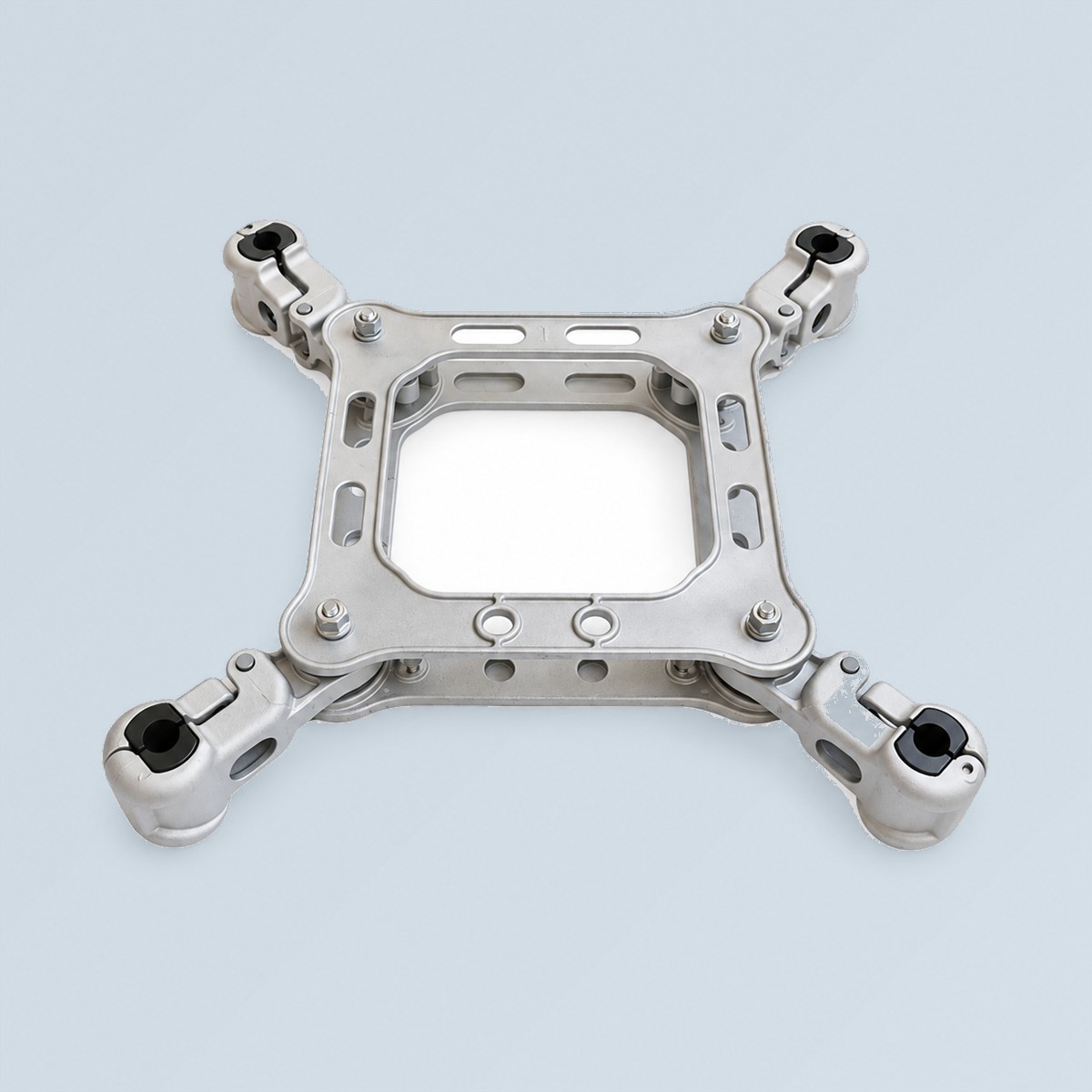

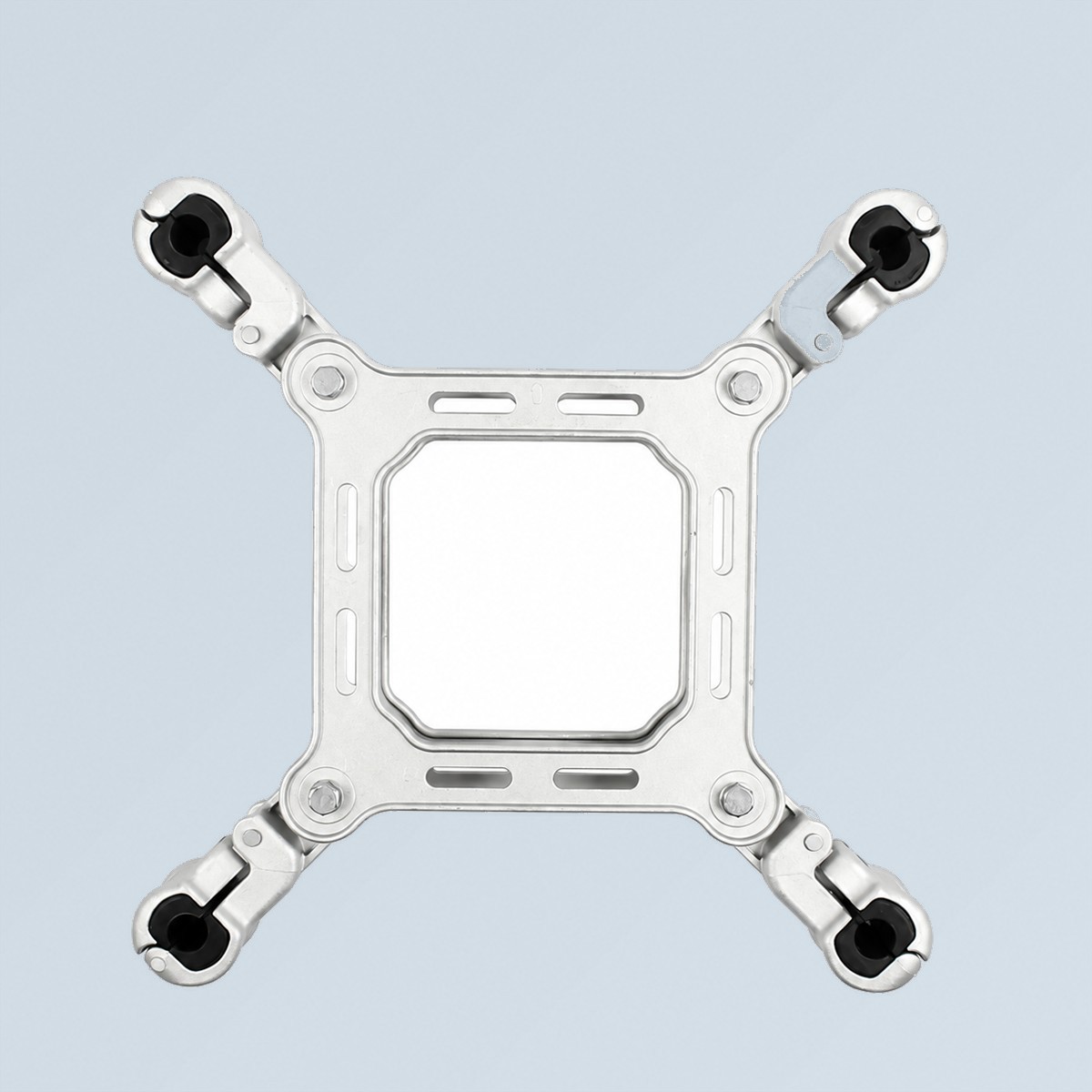

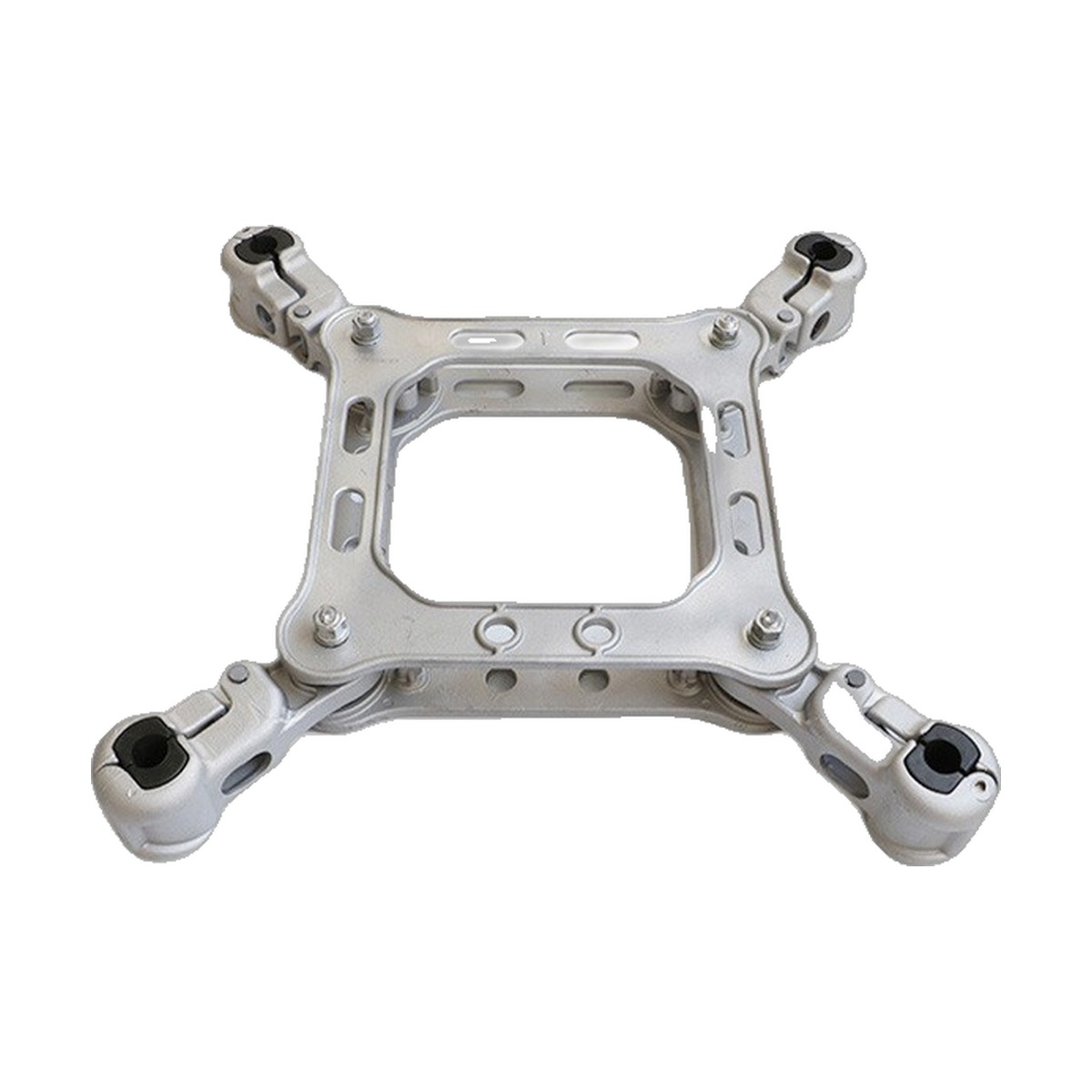

FJZ four-split (quad-bundle) spacer damper in cast aluminum alloy for 4-bundle transmission conductors. Suppresses aeolian vibration and sub-span oscillation, corona-free design.

PRODUCT DESCRIPTION

The FJZ four-split spacer damper is a key fitting for EHV/UHV transmission lines that use four conductors per phase (quad bundle). It maintains the prescribed spacing between the four sub-conductors and, through its articulated rubber-damped frame, dissipates wind-induced aeolian vibration and sub-span oscillation while allowing limited conductor movement. The body is cast from high-strength, corrosion-resistant aluminum alloy, with elastomer-damped clamps that grip each sub-conductor without damaging the strands. The open, streamlined frame also minimizes corona and radio interference at high voltage.

Key Features

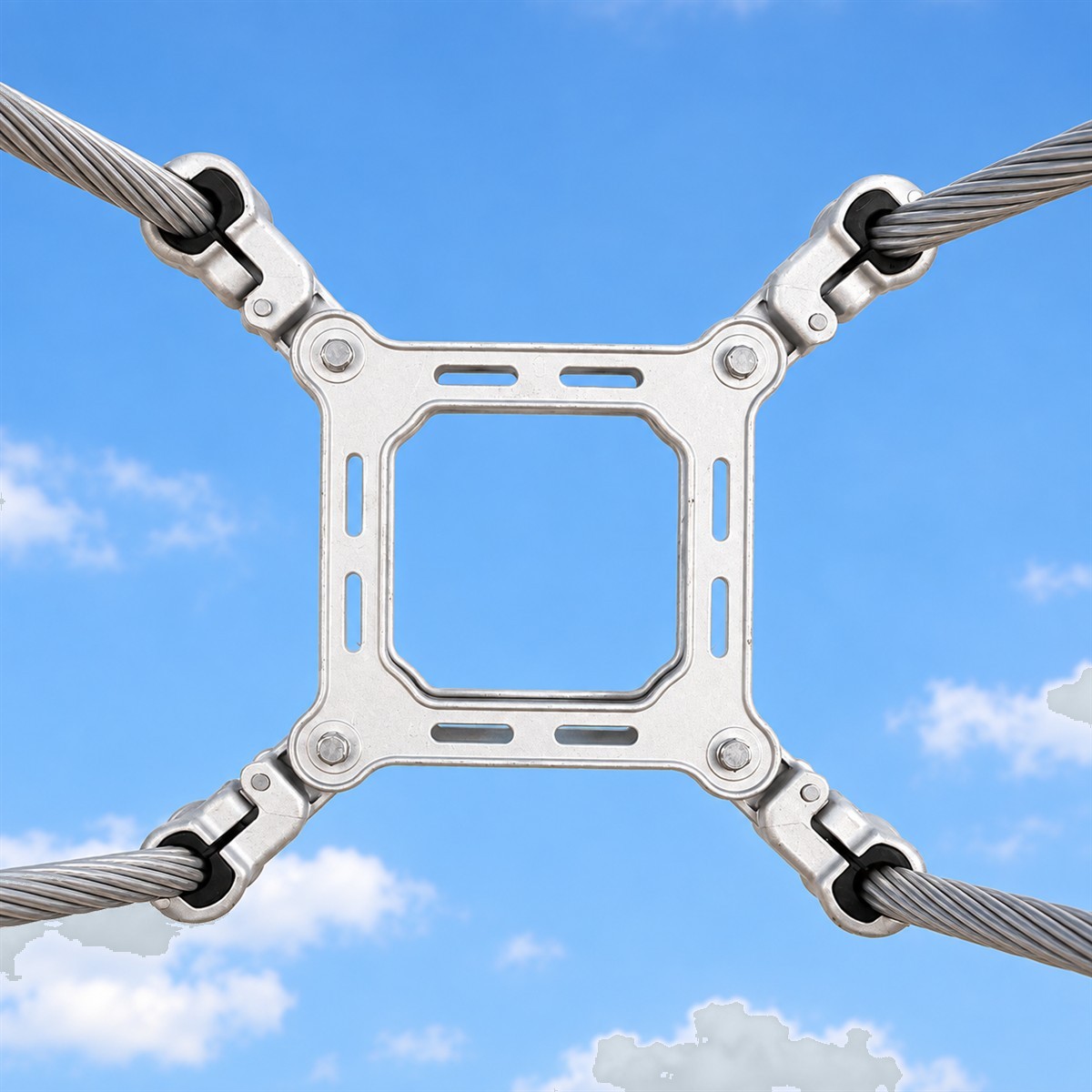

• Four-Conductor Control — Holds four sub-conductors at the design spacing for the whole quad-bundle span.
• Integrated Damping — Elastomer hinges absorb aeolian vibration and sub-span oscillation energy.
• Articulated Frame — Allows controlled conductor movement under wind, ice and thermal expansion.
• High-Grade Aluminum Casting — Heat-treated aluminum alloy offers high strength with light weight.
• Corona-Smooth Design — Streamlined clamps and rounded edges reduce corona and RIV at EHV/UHV levels.

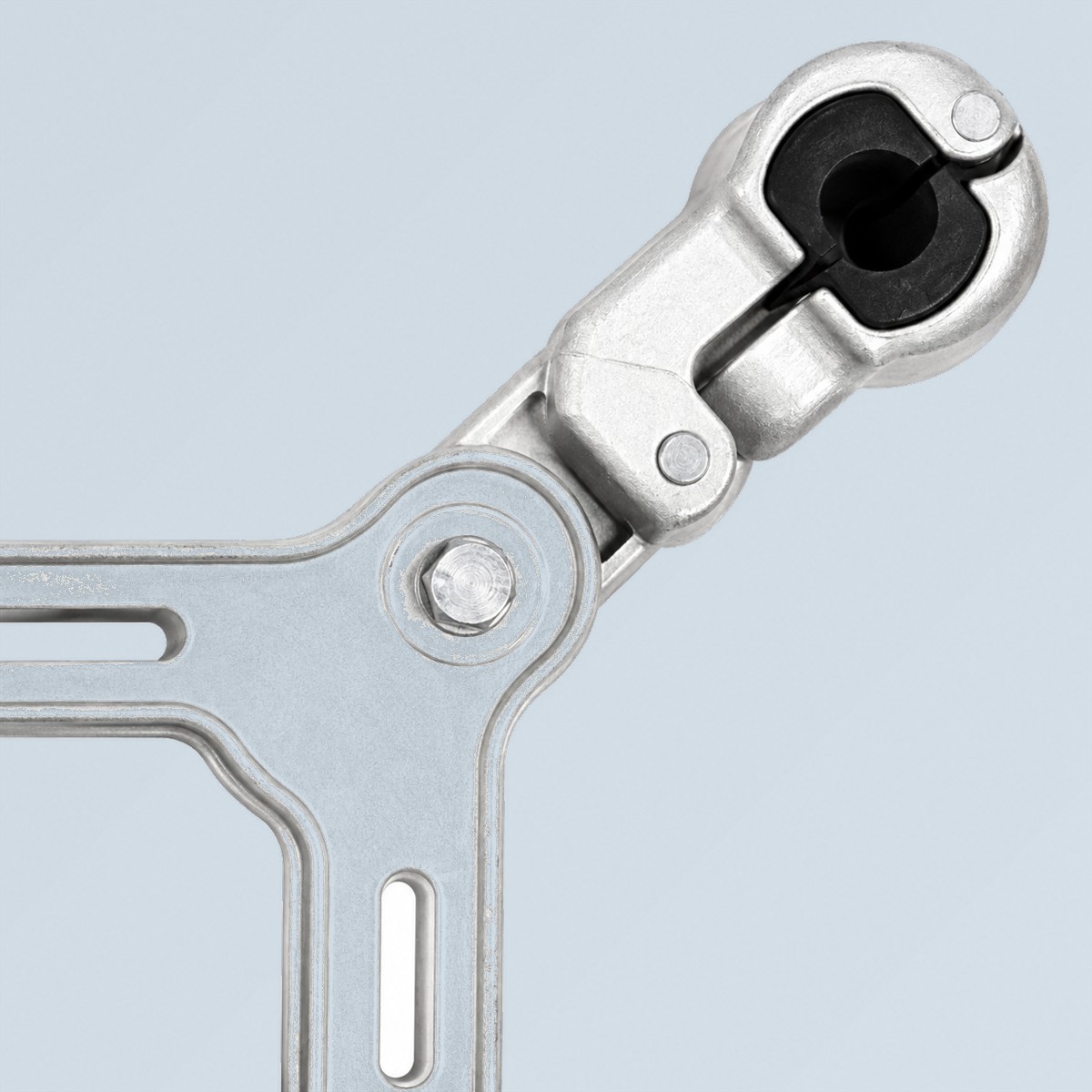

• Conductor-Safe Clamps — Rubber-lined jaws grip strands without looseness or strand damage.
• Easy Installation — Bolted clamp halves can be fitted from the line with standard hot-stick tools.
• Standards-Based — Built to GB/T 2339 / IEC 61854 spacer-damper requirements for bundle conductors.

Specifications
• Model: FJZ four-split spacer damper
• Bundle type: Quad (4-conductor) bundle
• Frame material: Cast aluminum alloy, heat-treated
• Damping: Elastomer / rubber hinge elements
• Clamps: Bolted, rubber-lined conductor grips
• Voltage: EHV/UHV overhead lines
• Standard: GB/T 2339 / IEC 61854

Applications Installed at intervals along quad-bundle EHV/UHV transmission lines to maintain spacing and suppress wind-induced vibration and sub-span oscillation.
