PRODUCT SHORT DESCRIPTION
JB series parallel groove clamp (JB-0 to JB-6) for aluminum and copper-aluminum branch joints and conductor splicing. Bolted, broad size range, low-resistance overhead fitting.

PRODUCT DESCRIPTION

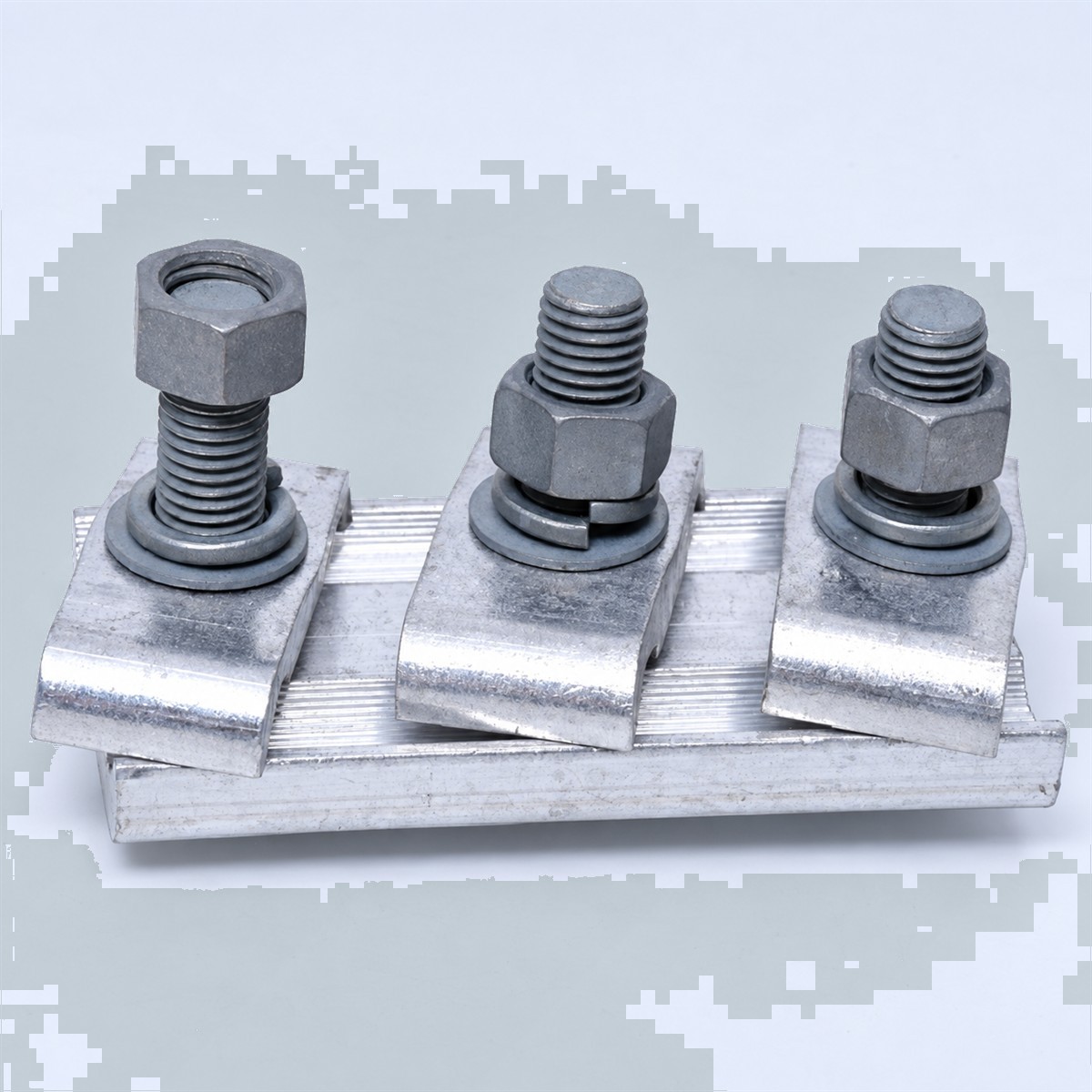

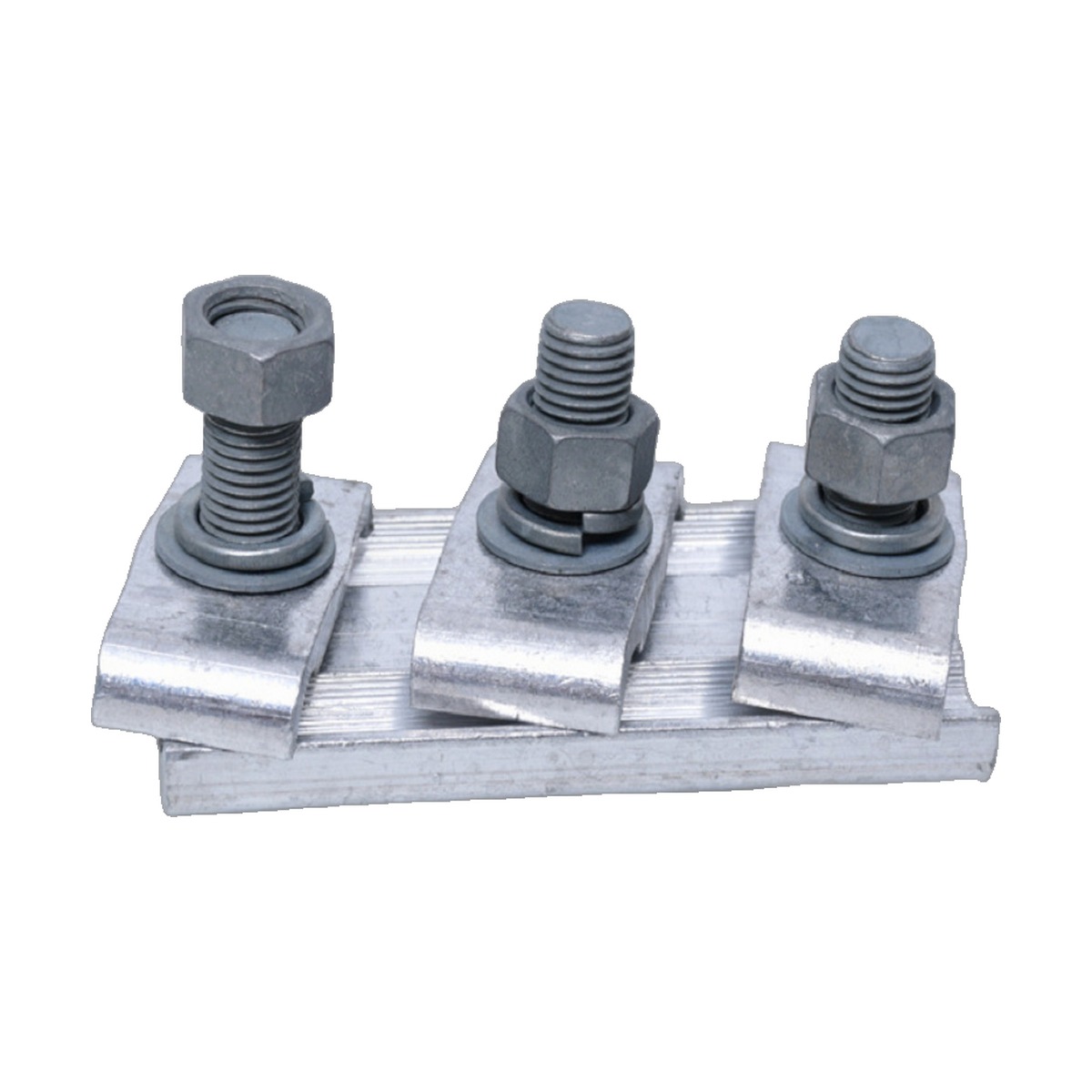

The JB series parallel groove clamp is a widely used bolted connector for joining two parallel conductors or tapping a branch line from a main line on overhead distribution networks. The clamp uses two grooved aluminum plates drawn together by bolts, creating a large, even contact surface that keeps contact resistance low and stable. The series runs from JB-0 through JB-6 to cover small service drops up to large primary conductors, and bimetal versions are available for copper-to-aluminum joints. No hydraulic tools are needed, making it fast and economical for field installation.

Key Features
• Complete Size Series — JB-0 to JB-6 cover service-drop through main-feeder conductor sizes.
• Parallel & Branch Joints — Handles conductor splicing and live-line branch tapping in one fitting.
• Large Contact Area — Deep precision grooves maximize contact and reduce resistance and hot spots.
• Bimetal Option — Copper-aluminum inserts prevent galvanic corrosion at Cu-Al transitions.
• Strong Bolted Grip — Galvanized bolts with spring washers maintain clamping force through thermal cycling.
• No Crimping Tool — Simple wrench installation lowers field time and equipment requirements.
• Anti-Corrosion — Aluminum-alloy body and plated hardware resist oxidation and weather.
• Standards-Based — Produced to GB/T 2314 / IEC 61284 parallel-groove clamp specifications.

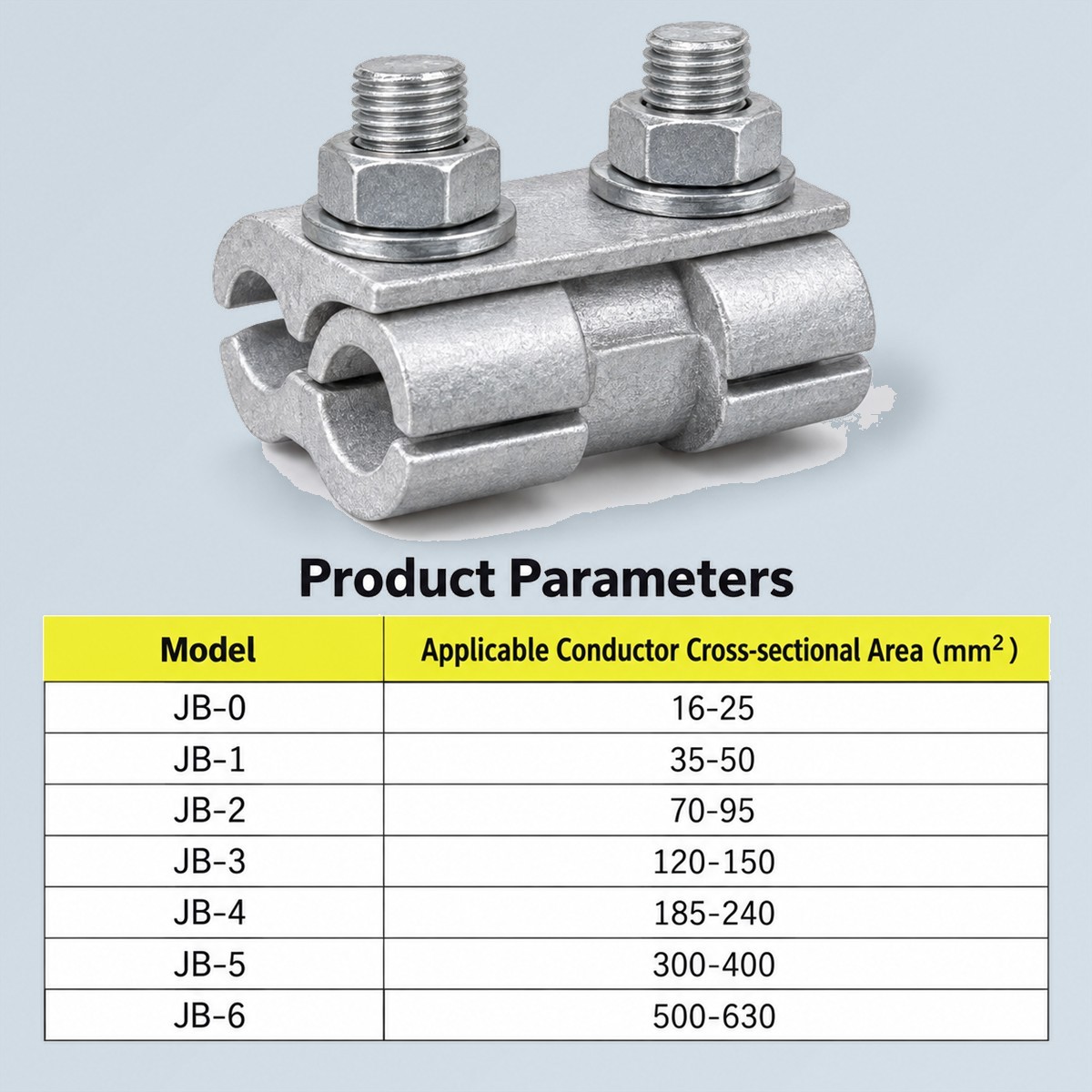

Specifications
• Model: JB-0, JB-1, JB-2, JB-3, JB-4, JB-5, JB-6
• Body: Aluminum alloy, precision grooves
• Hardware: Hot-dip galvanized bolts and washers
• Option: Bimetal Cu-Al version
• Connection: Bolted parallel / branch
• Tool: Standard wrench (no hydraulic press)
• Standard: GB/T 2314 / IEC 61284

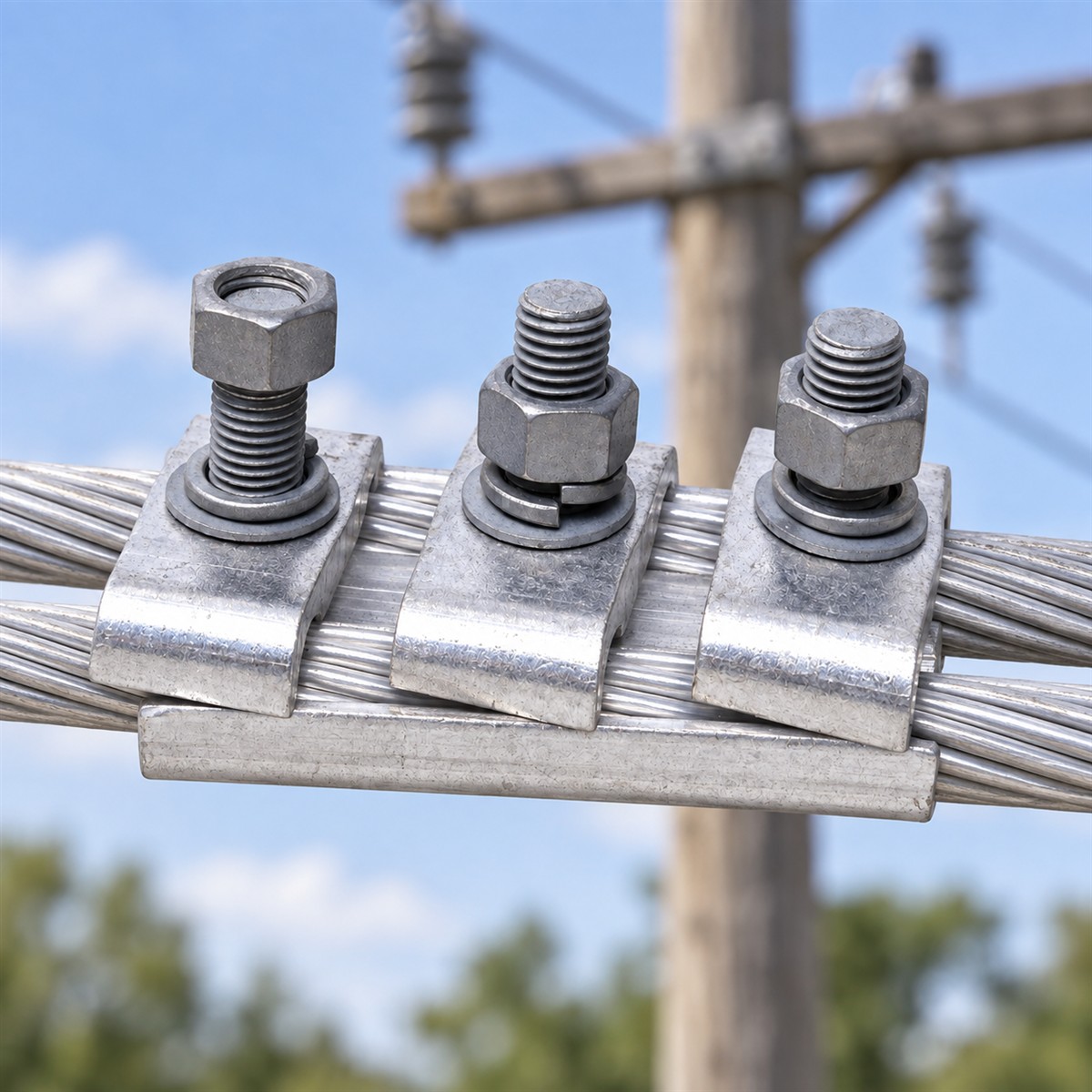

Applications Overhead LV/MV distribution line splicing, service-drop connections, street-light taps and transformer lead branch joints.
