PRODUCT SHORT DESCRIPTION
Adjustable HV earthing rod with interchangeable flat-mouth busbar, double-spring hook, duck-bill jaw and universal-head clamps. Versatile grounding for busbars and conductors.

PRODUCT DESCRIPTION

The adjustable high-voltage earthing rod is a versatile grounding tool supplied with a set of interchangeable clamp heads to suit different connection points. The flat-mouth busbar clamp grips flat copper or aluminum busbars in switchgear; the double-spring hook and duck-bill (alligator) jaw clamp onto overhead conductors and round terminals; and the universal head adapts to irregular fittings. A single insulated rod and flexible copper cable can therefore be moved between busbar, line and equipment grounding tasks, reducing the number of separate sets a crew must carry.

Key Features

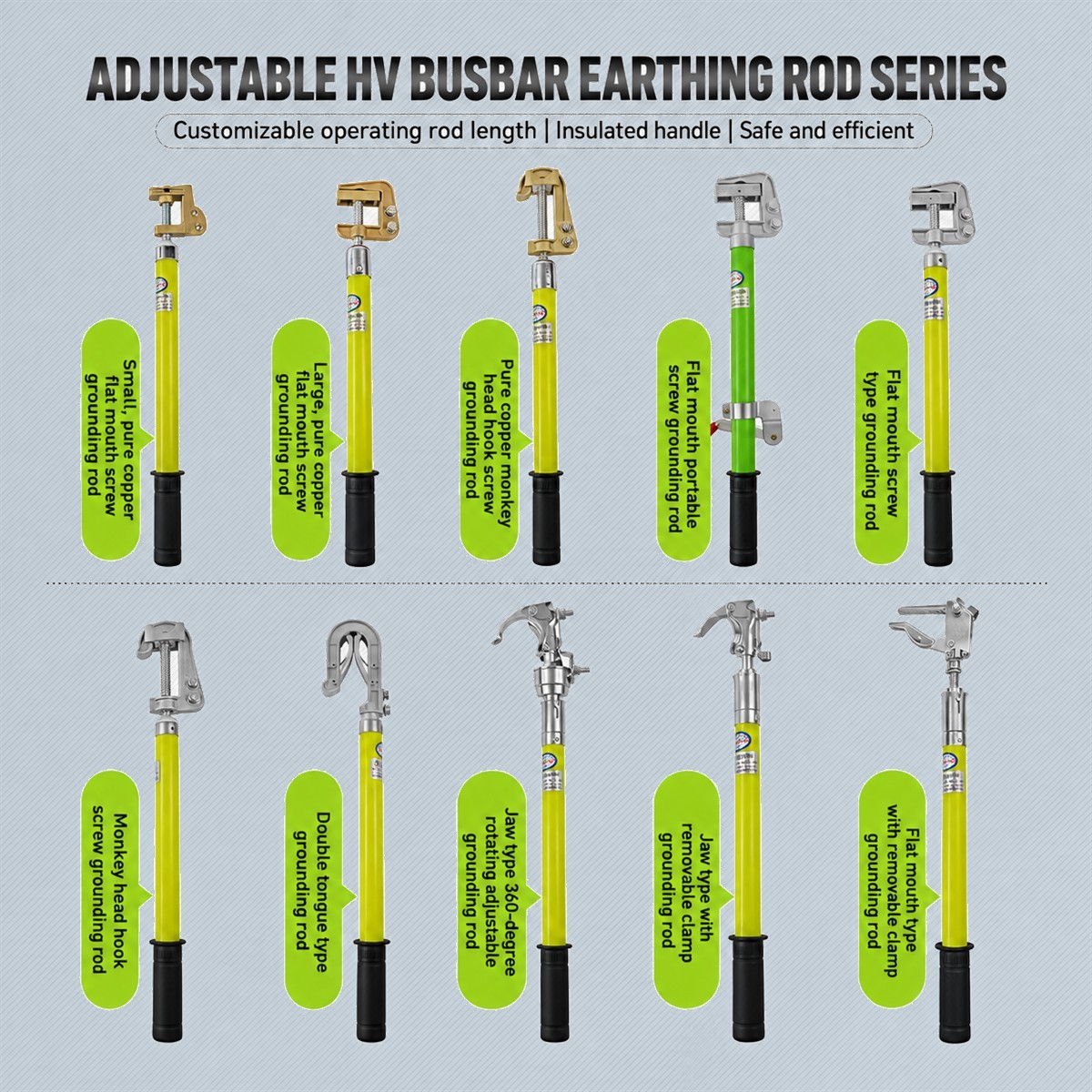

• Multiple Clamp Heads — Flat-mouth busbar, double-spring hook, duck-bill jaw and universal heads in one system.

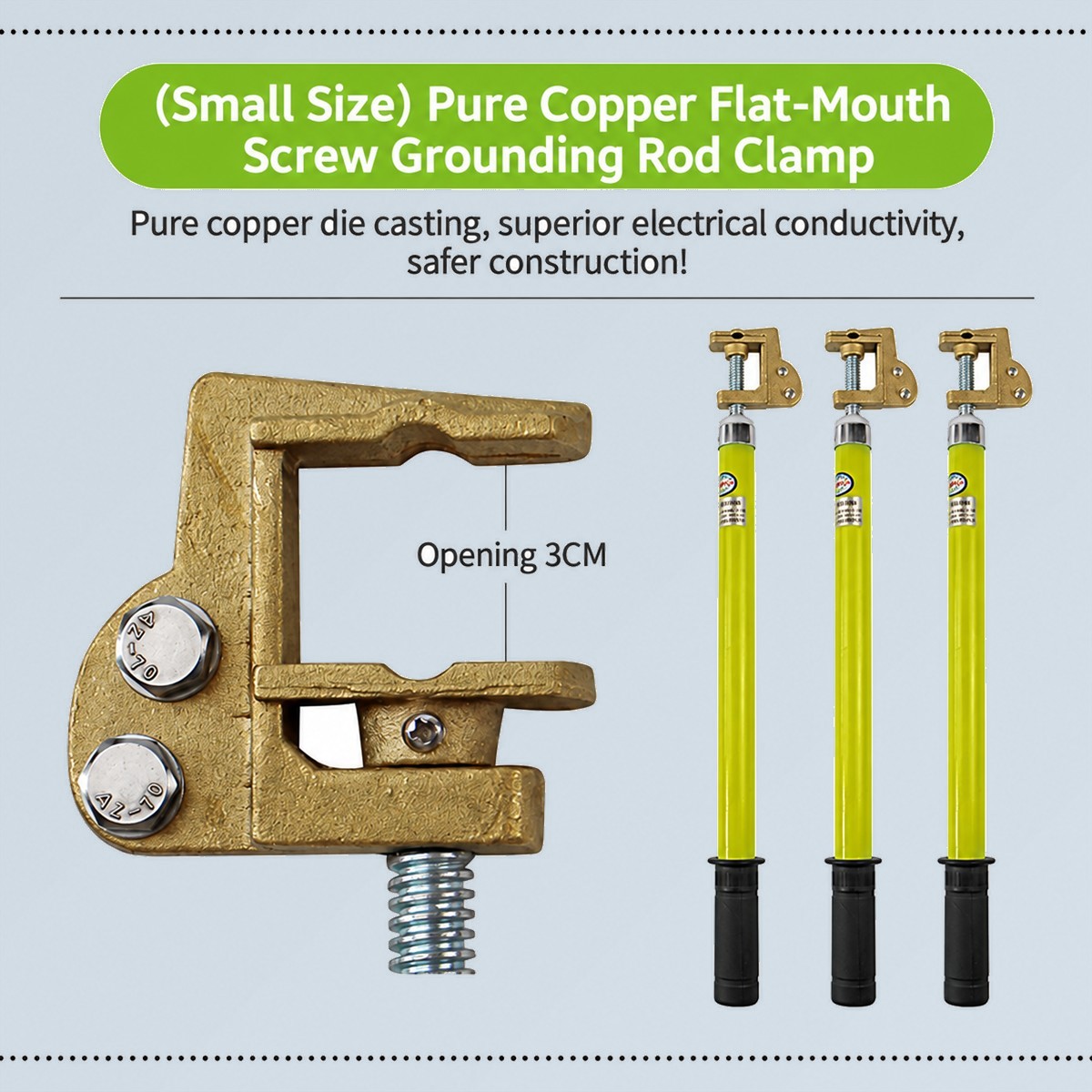

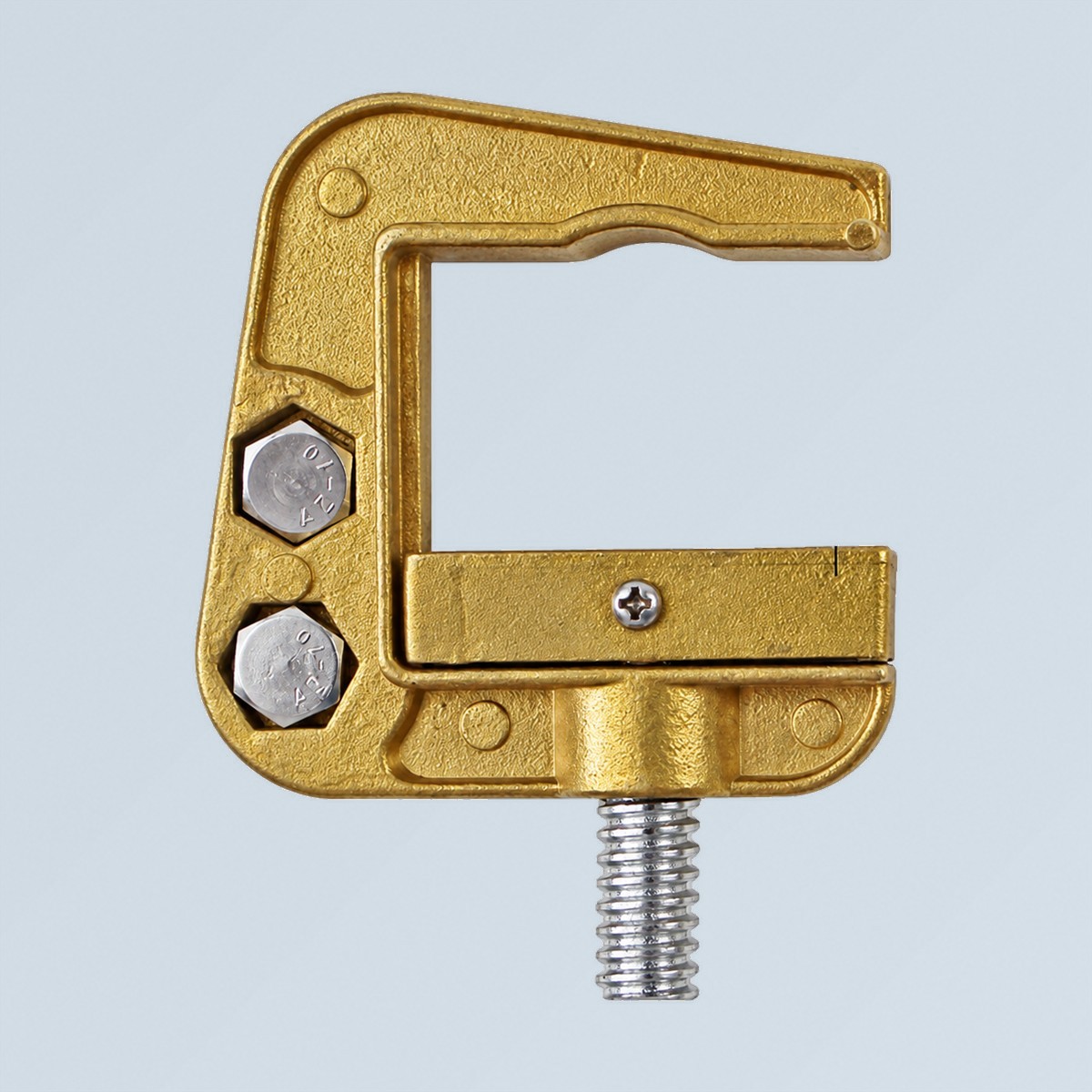

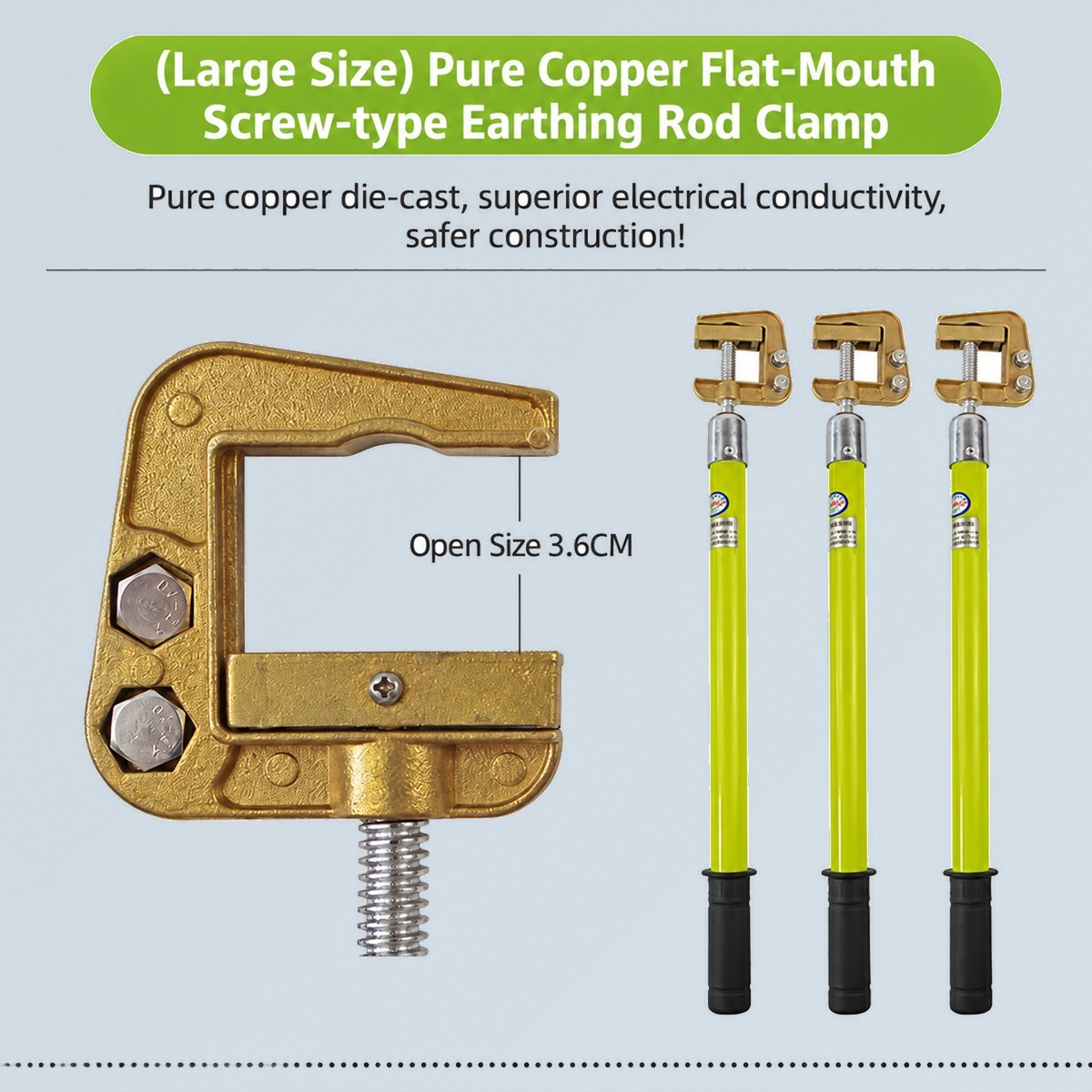

• Flat-Mouth Busbar Clamp — Screw clamp locks firmly onto flat copper and aluminum busbars.
• Double-Spring Hook — Spring-loaded hook snaps onto overhead conductors and stays attached.
• Duck-Bill Jaw — Alligator-style jaw grips round terminals and irregular fittings.
• Universal Head — Adjustable head adapts to varied bolt, ball and eye connections.

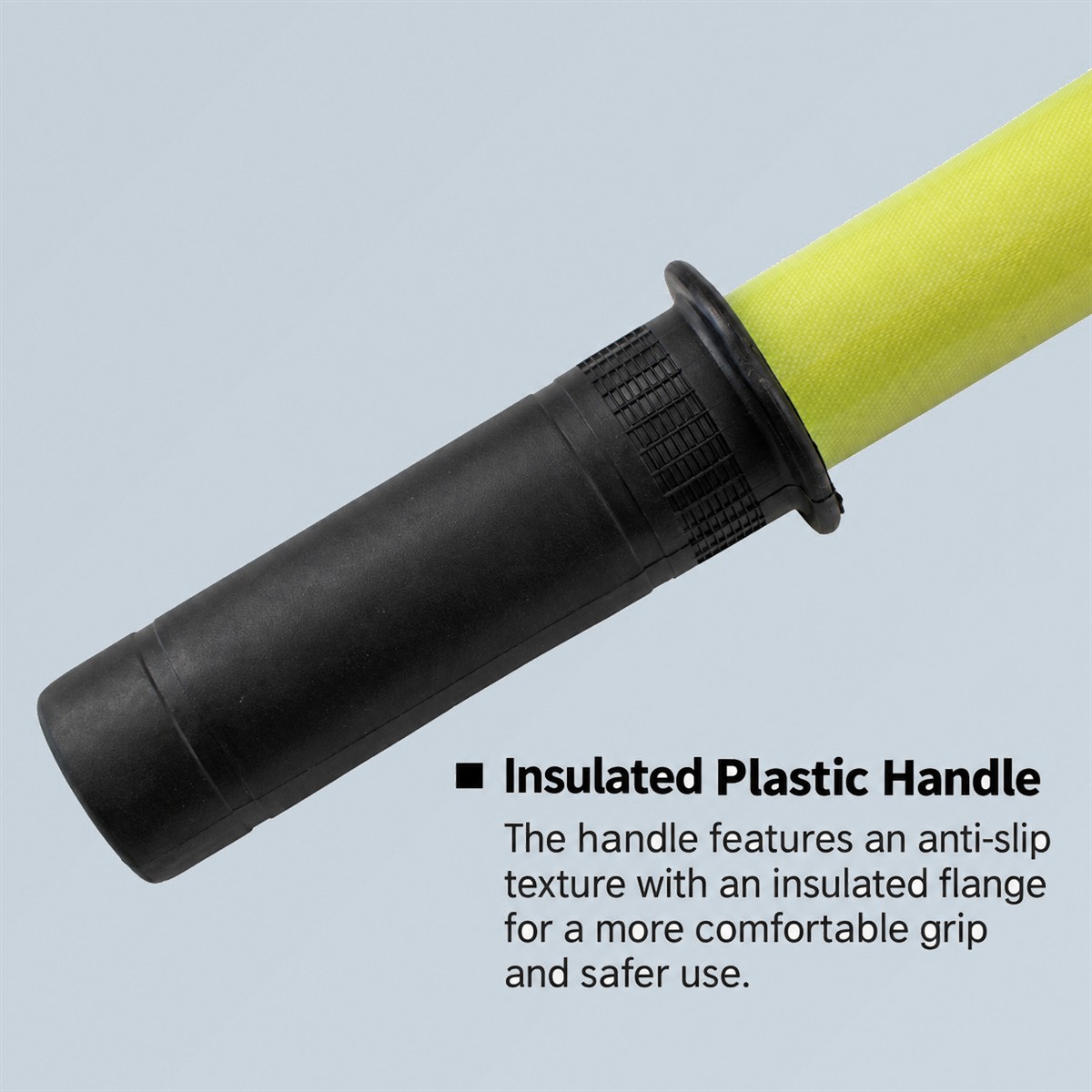

• Insulated Rod — HV fiberglass rod keeps the operator at safe distance during connection.
• Quick Head Change — Heads swap rapidly so the same rod handles many grounding points.
• Matched Assembly — Used with flexible copper cable and earth clamp to IEC 61230 requirements.

Specifications
• Heads: Flat-mouth, double-spring hook, duck-bill, universal
• Rod: HV fiberglass insulating rod
• Cable: Flexible copper earthing cable (set)
• Application: Busbar, conductor, terminal grounding
• Adjustment: Interchangeable / adjustable heads
• Voltage: HV distribution class
• Standard: IEC 61230 / GB/T 18269

Applications Grounding switchgear busbars, overhead conductors, transformer terminals and irregular fittings during HV maintenance in substations and on lines.
