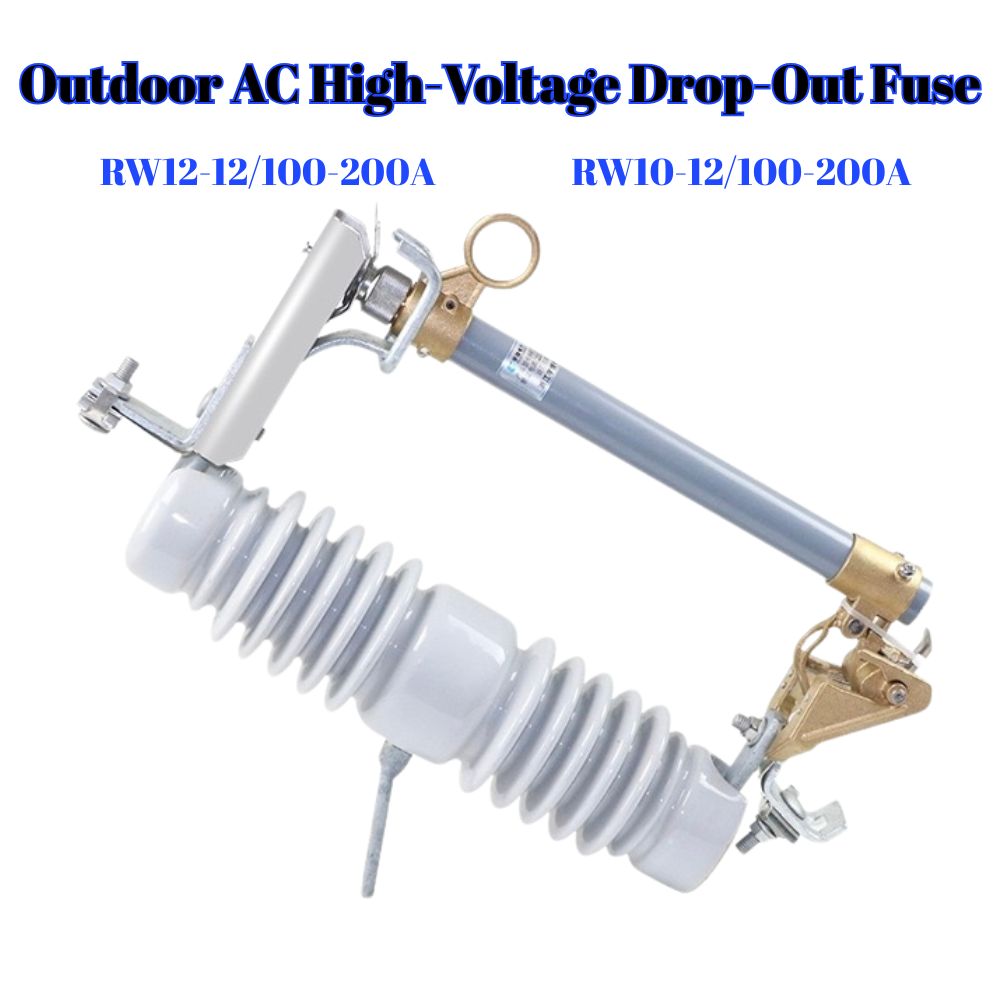

The RW11 and RW12 series outdoor AC high-voltage drop-out fuses are the most widely used protection devices on 10kV distribution lines and pole-mounted transformers. They provide reliable overload and short-circuit protection: when the fuse element melts due to overcurrent, the fuse tube automatically drops under gravity, creating a visible isolation gap and clear fault indication. The tube can be easily opened with an insulating operating rod for fuse replacement without dismantling the device.

Key Features

• Automatic Drop-Out with Visible Break — Upon fuse operation the fuse carrier drops to a clearly visible open position, giving line crews immediate fault location and a safe isolation point.
• Effective Arc Extinguishing — The arc-quenching tube generates deionizing gas under fault current to rapidly extinguish the arc; the upward exhaust design prevents inter-phase flashover.
• Optional Load-Break Type — Models fitted with an auxiliary arc-control hood can switch rated load currents, doubling as a simple load break switch for line and transformer switching.
• Weather-Resistant Insulation — Available with high-strength porcelain or silicone rubber composite insulation; the composite housing is shatterproof, hydrophobic and pollution-resistant.
• Easy Maintenance — Fuse links can be replaced quickly from the ground using a hook stick; no special tools required, minimizing outage duration.
• Corrosion-Proof Hardware — Hot-dip galvanized steel frame and stainless steel springs and pins ensure long outdoor service life.

Specifications

• Rated voltage: 12kV
• Rated current: 100A / 200A
• Rated breaking capacity: up to 12.5kA
• Insulation: Porcelain or silicone rubber composite
• Types: Standard drop-out / load-break type
• Operation: Insulating hook stick

Applications Primary-side protection of pole-mounted distribution transformers; 10kV overhead line branch protection; rural and urban distribution networks; industrial and mining power supply; temporary construction power.

Custom fuse link ratings, mounting brackets and load-break options are available. Contact us for the full catalog.
