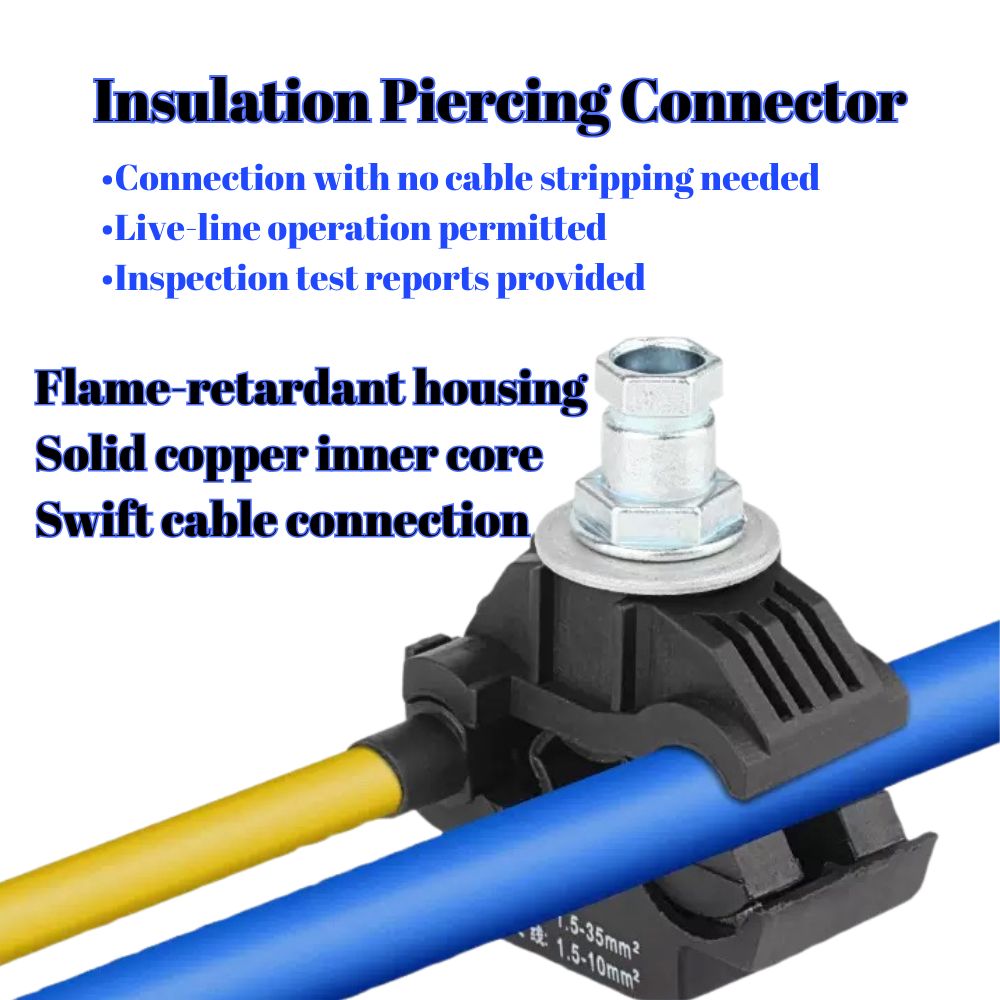

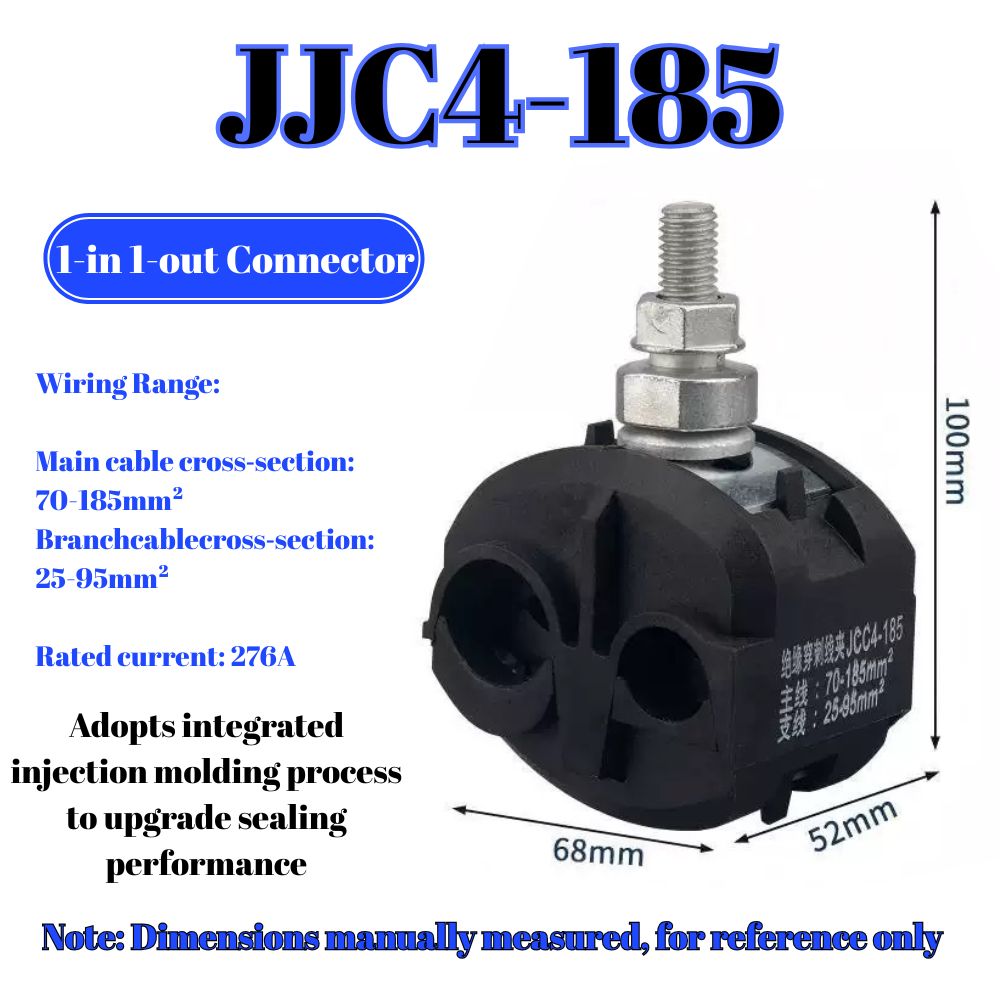

Our insulation piercing connectors are high-performance power fittings for splicing and branch tapping of insulated conductors. They pierce directly through cable insulation without stripping, enabling fast, safe electrical connections — a superior alternative to traditional crimp and wrap methods.

Key Features

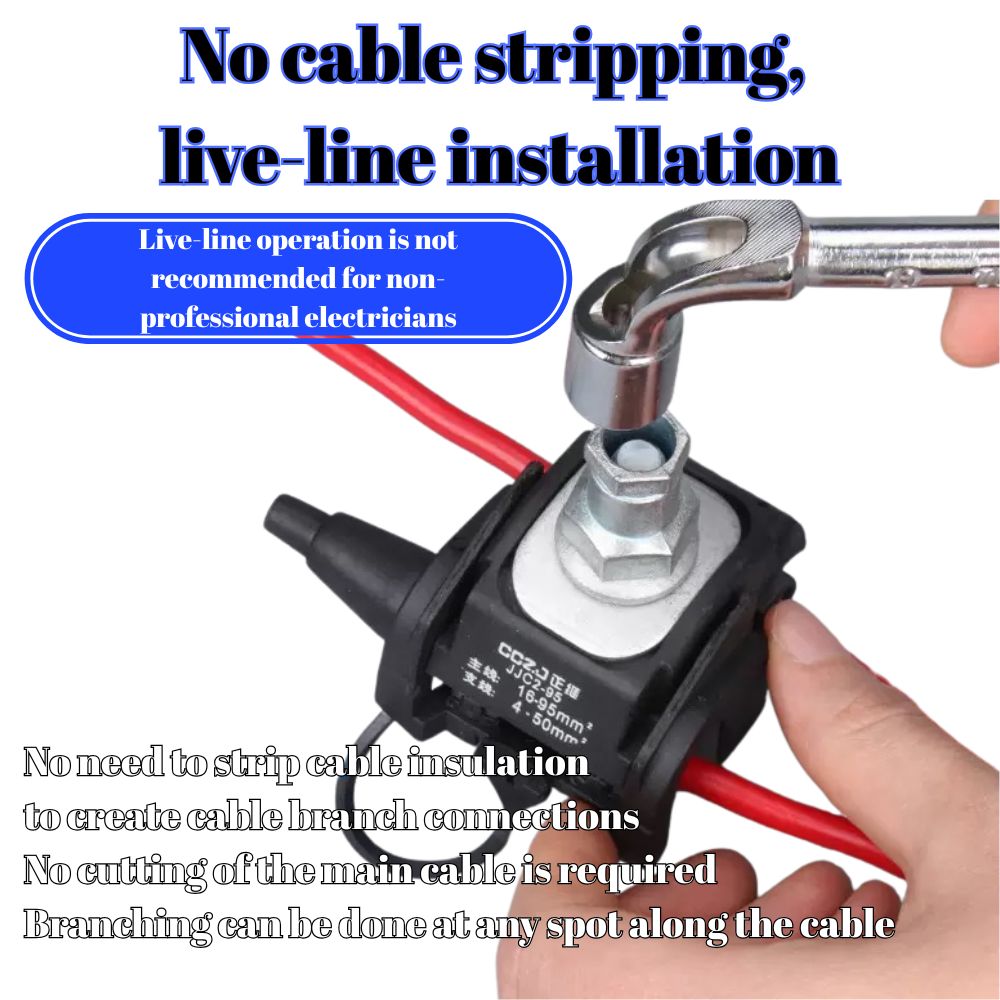

• Quick Installation, No Stripping — No insulation removal or cable cutting needed. Make branch taps at any line position; one technician can complete installation with a standard socket wrench, cutting labor time sharply.

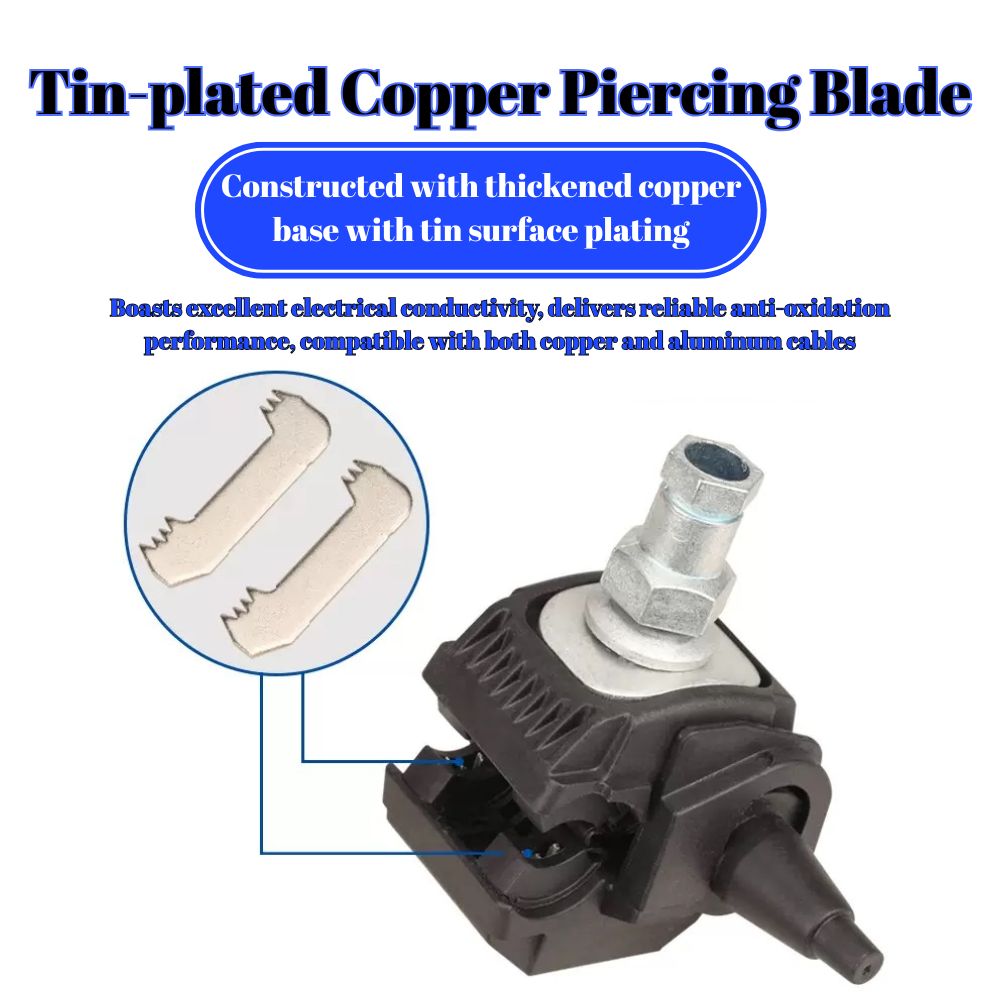

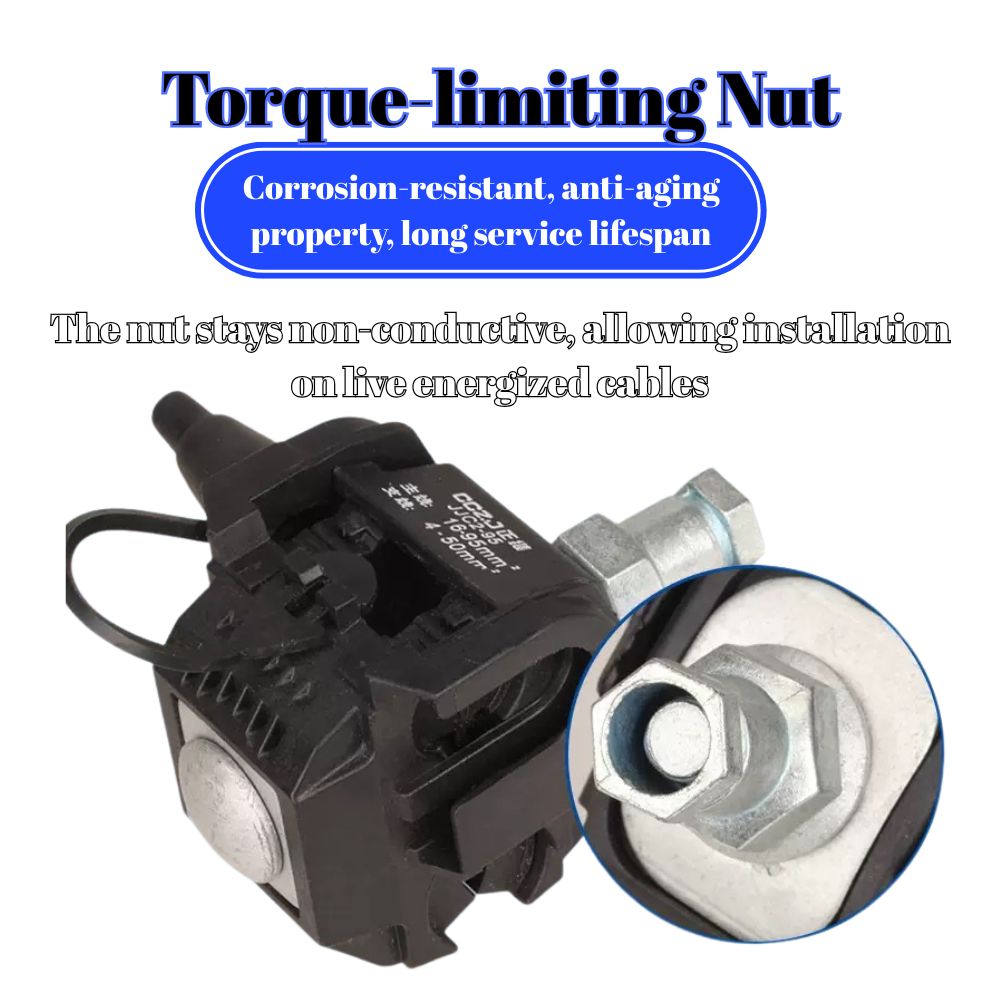

• Reliable Electrical Contact — Torque shear nuts break off at preset torque for uniform piercing pressure. Tin-plated copper blades deliver low contact resistance, corrosion resistance and stable long-term performance.
• Weatherproof & Durable — Reinforced flame-retardant housing with a fully sealed waterproof structure. Dielectric strength ≥12kV, suitable for outdoor, underground and humid environments.
• Wide Compatibility — Works with copper and aluminum conductors (0.75–400mm²), supporting 0.6/1kV and 10kV systems for same-size and different-size connections.

Specifications

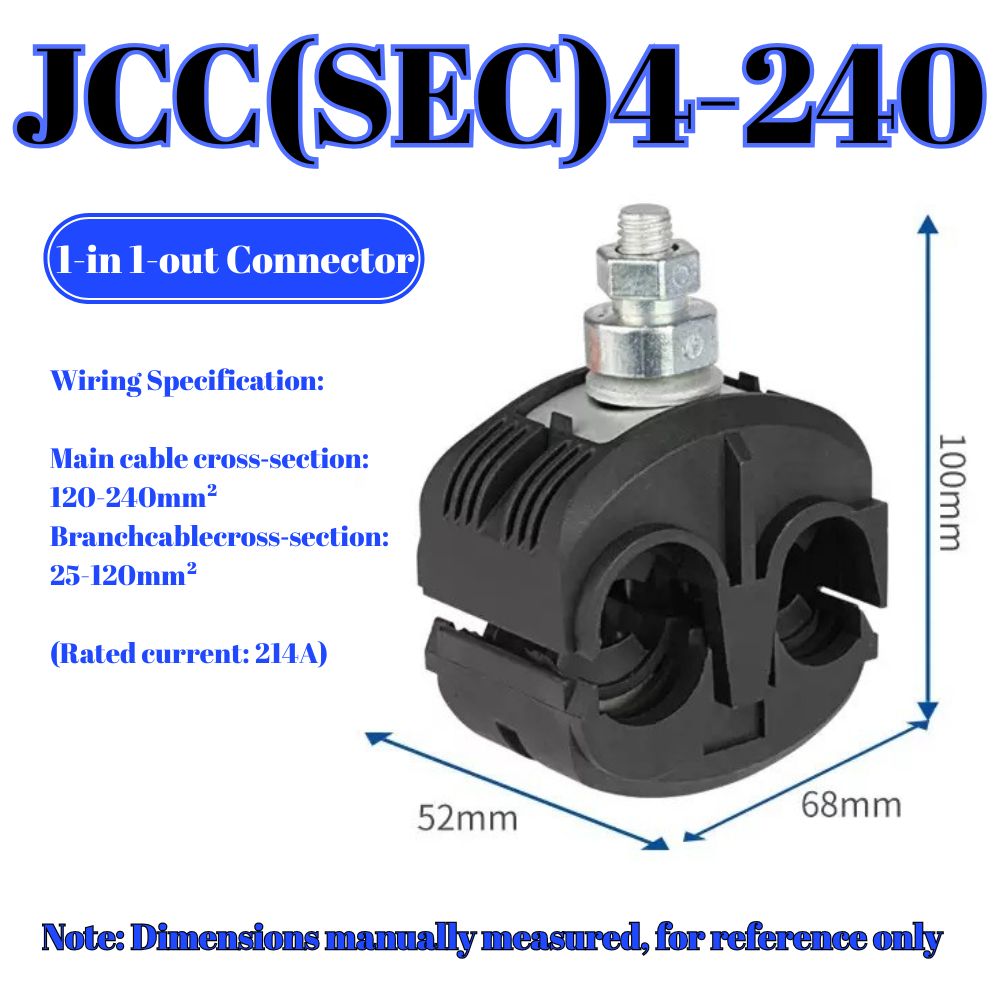

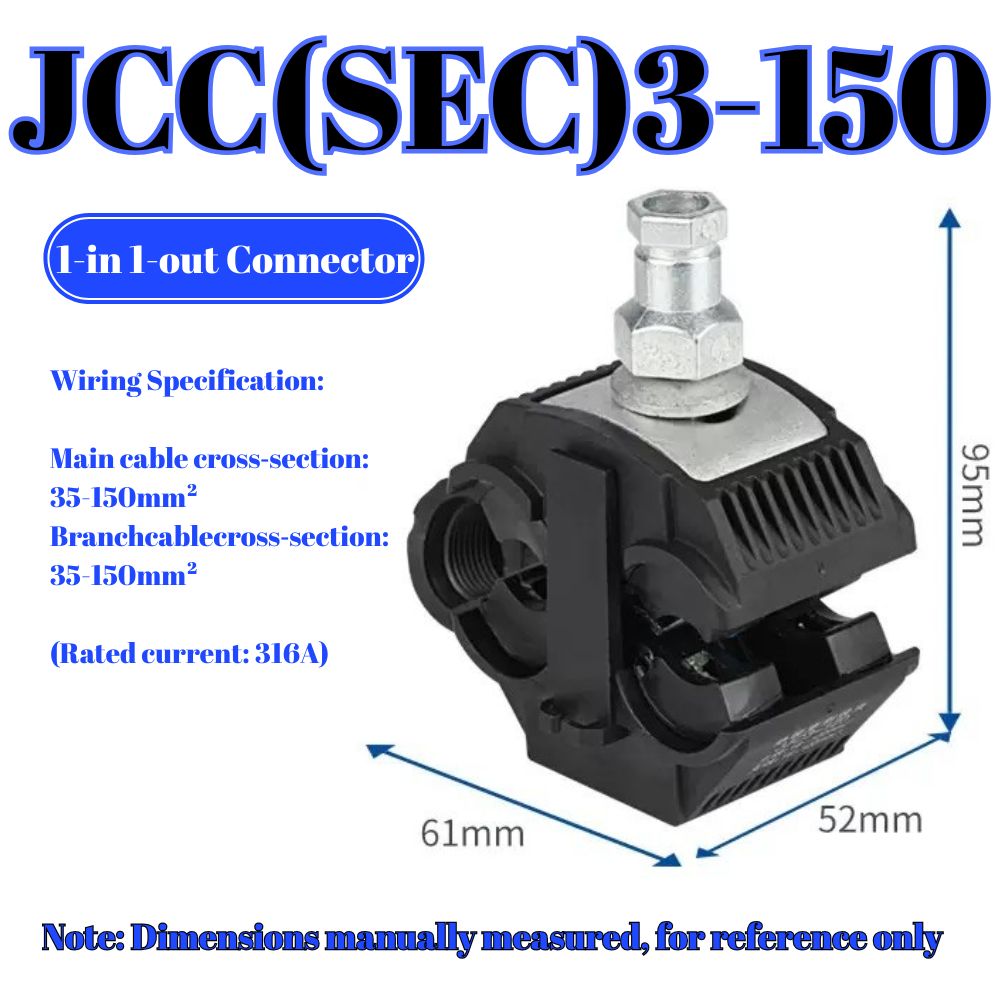

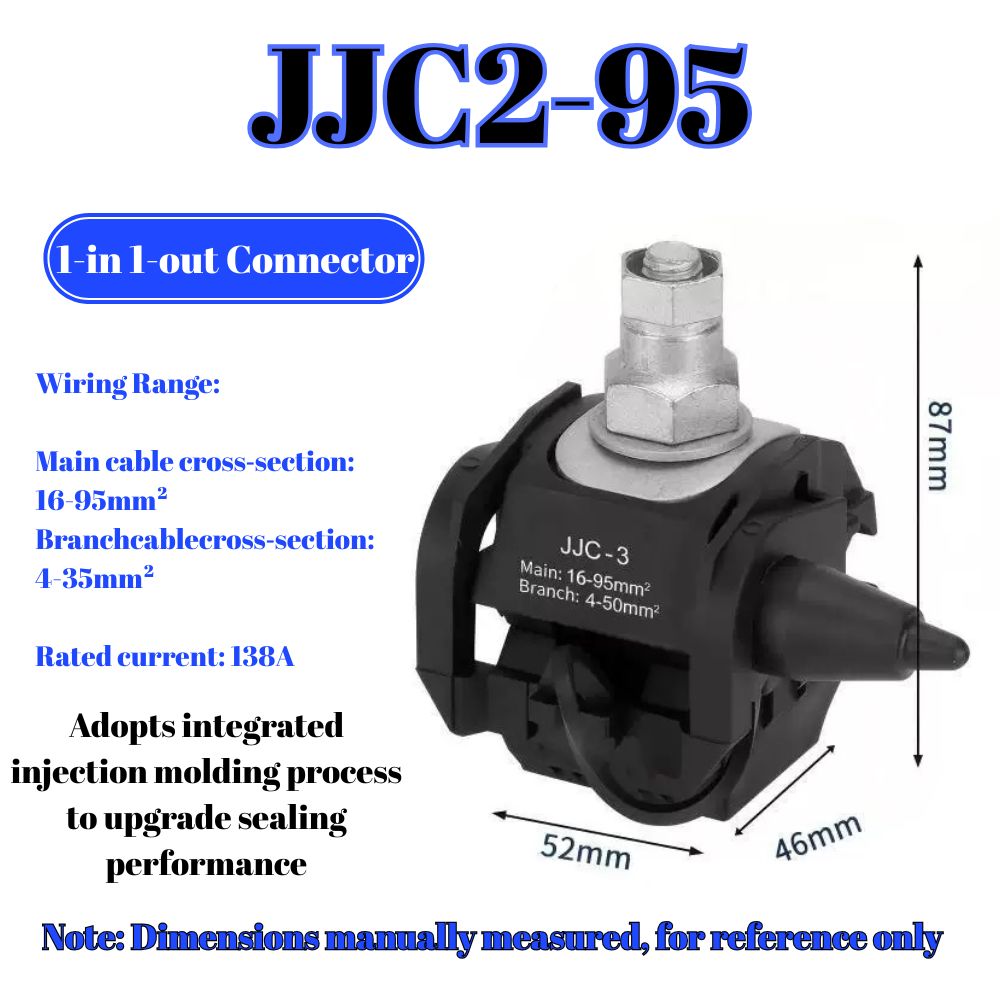

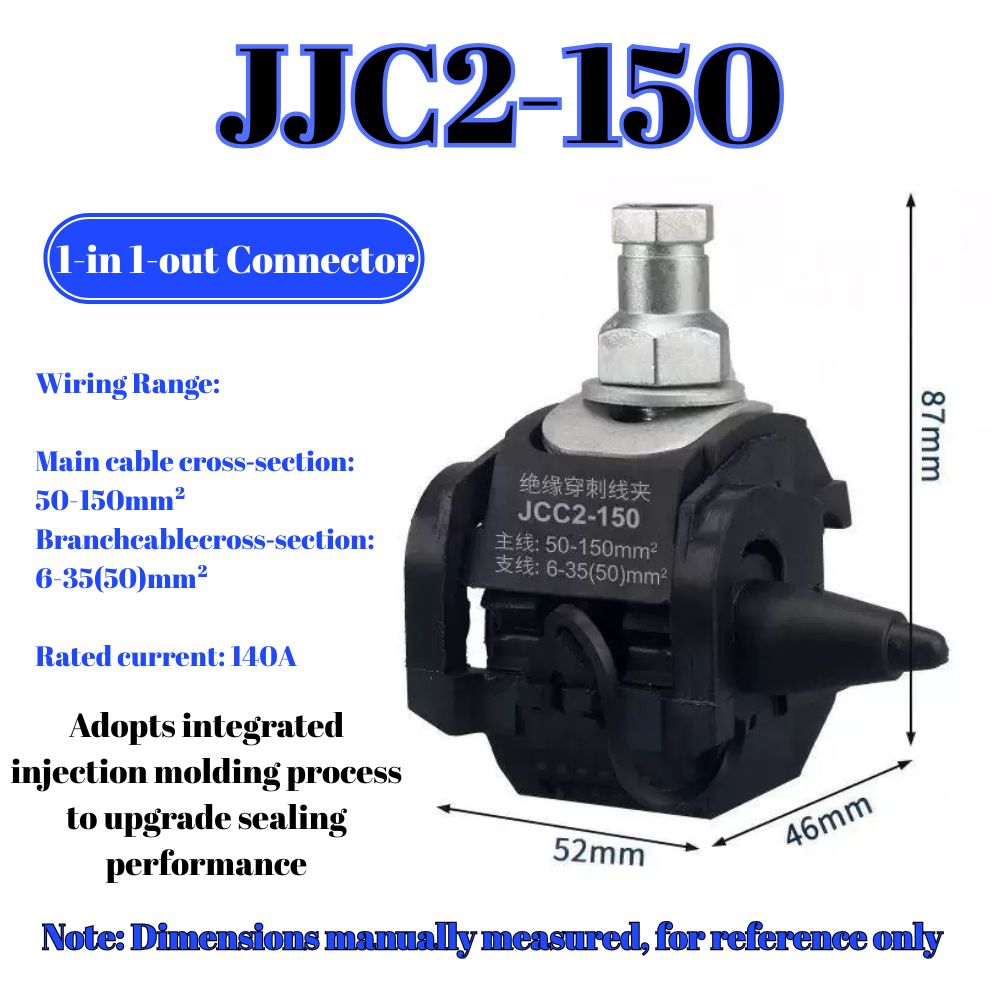

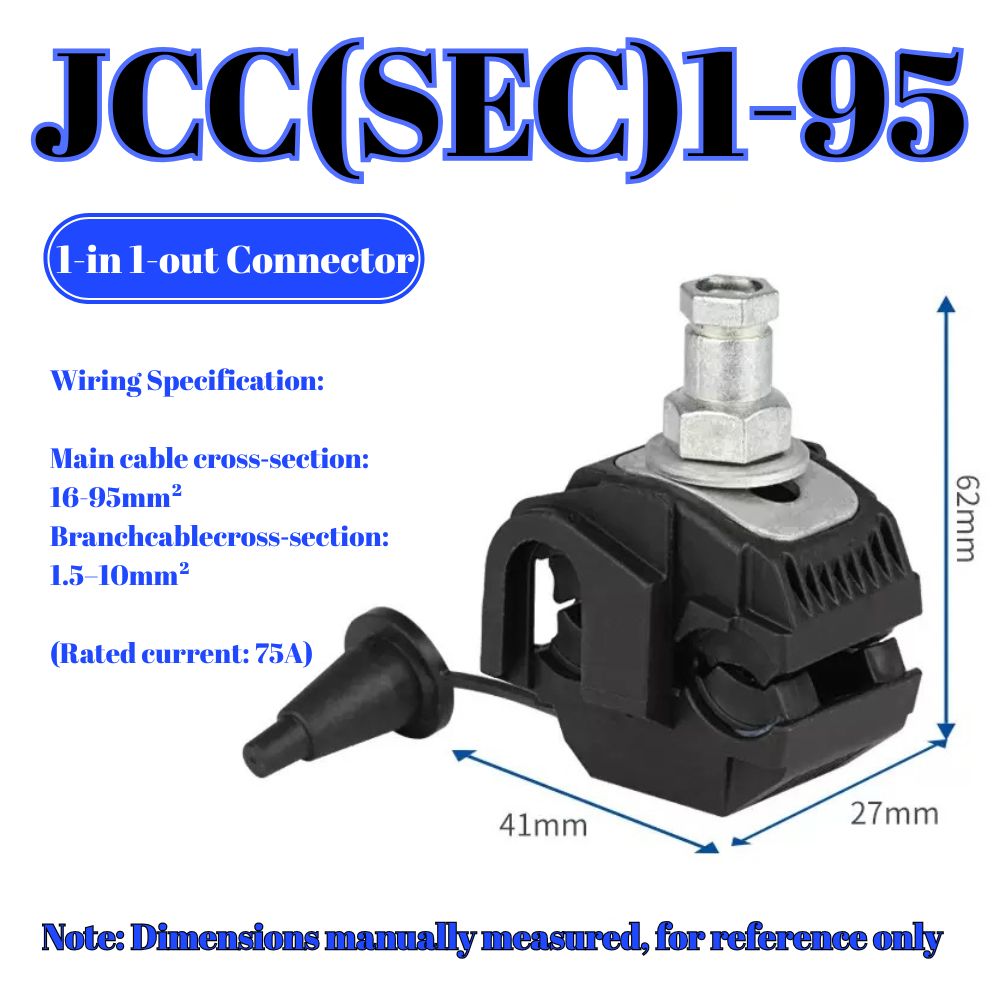

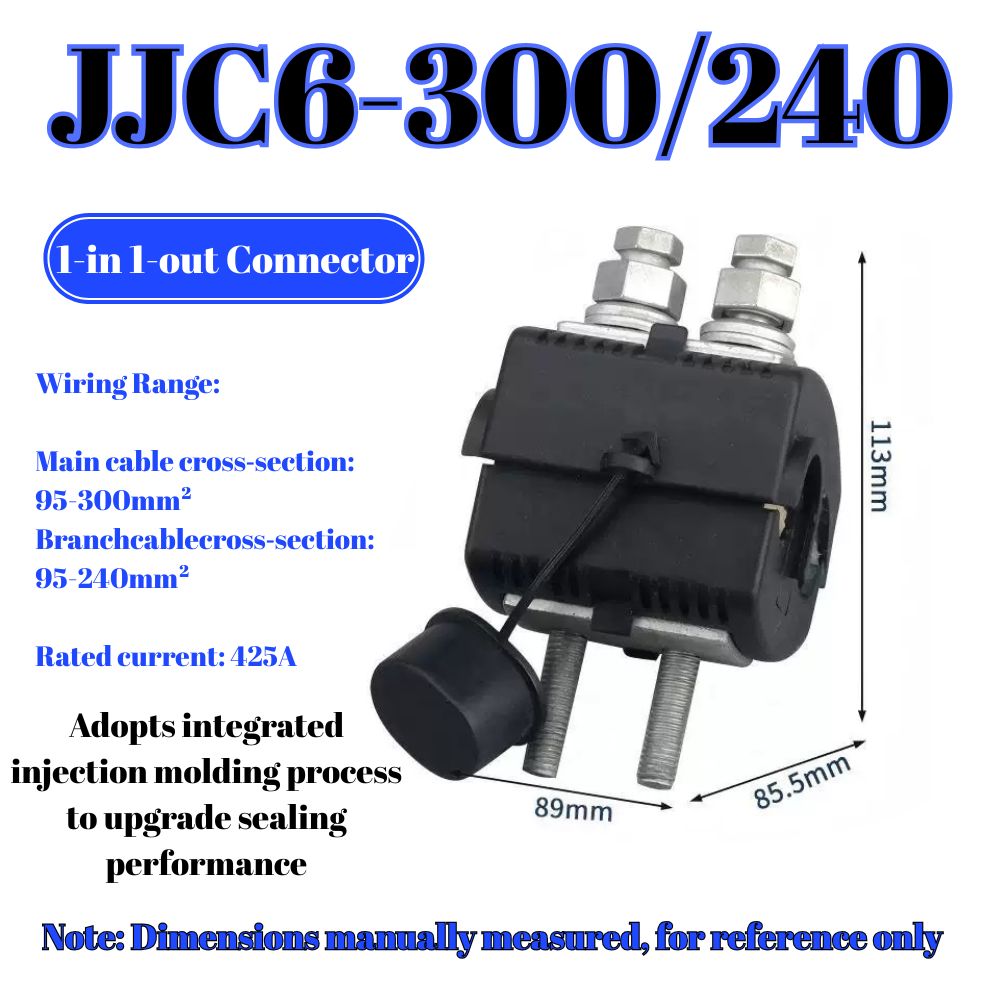

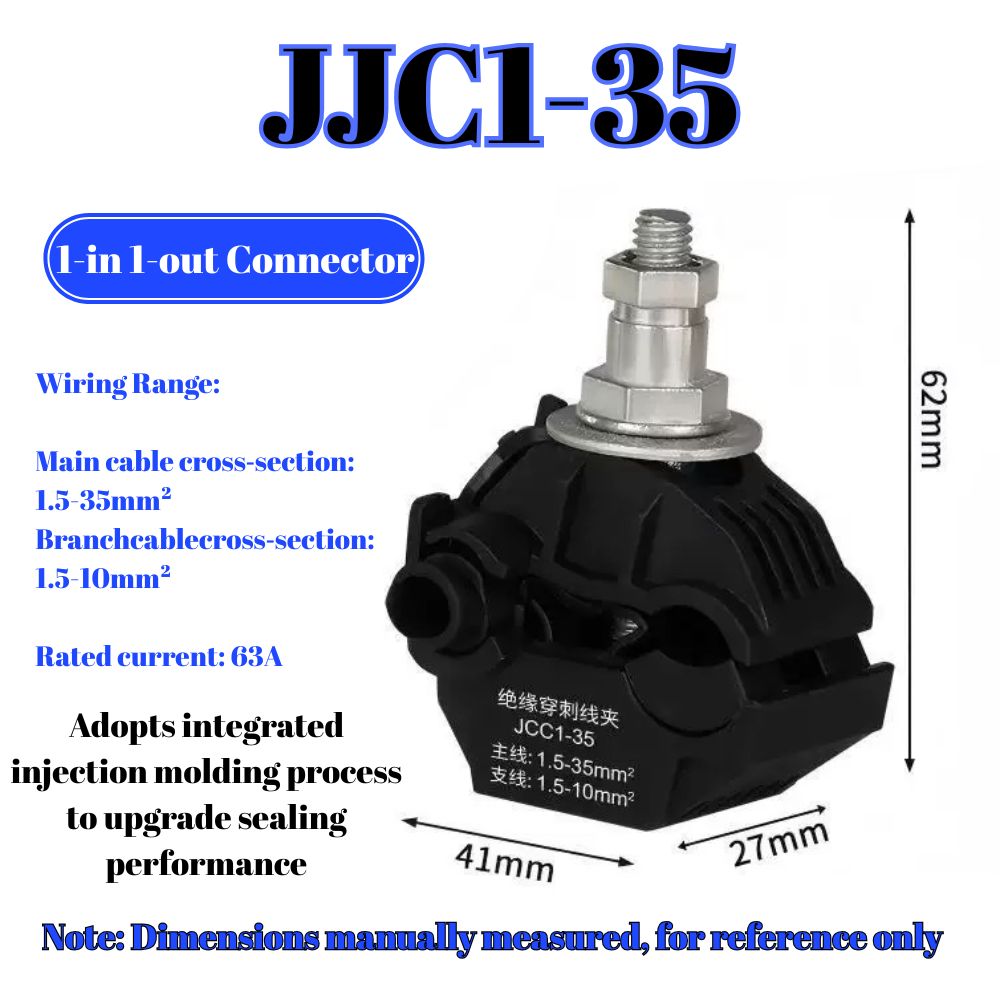

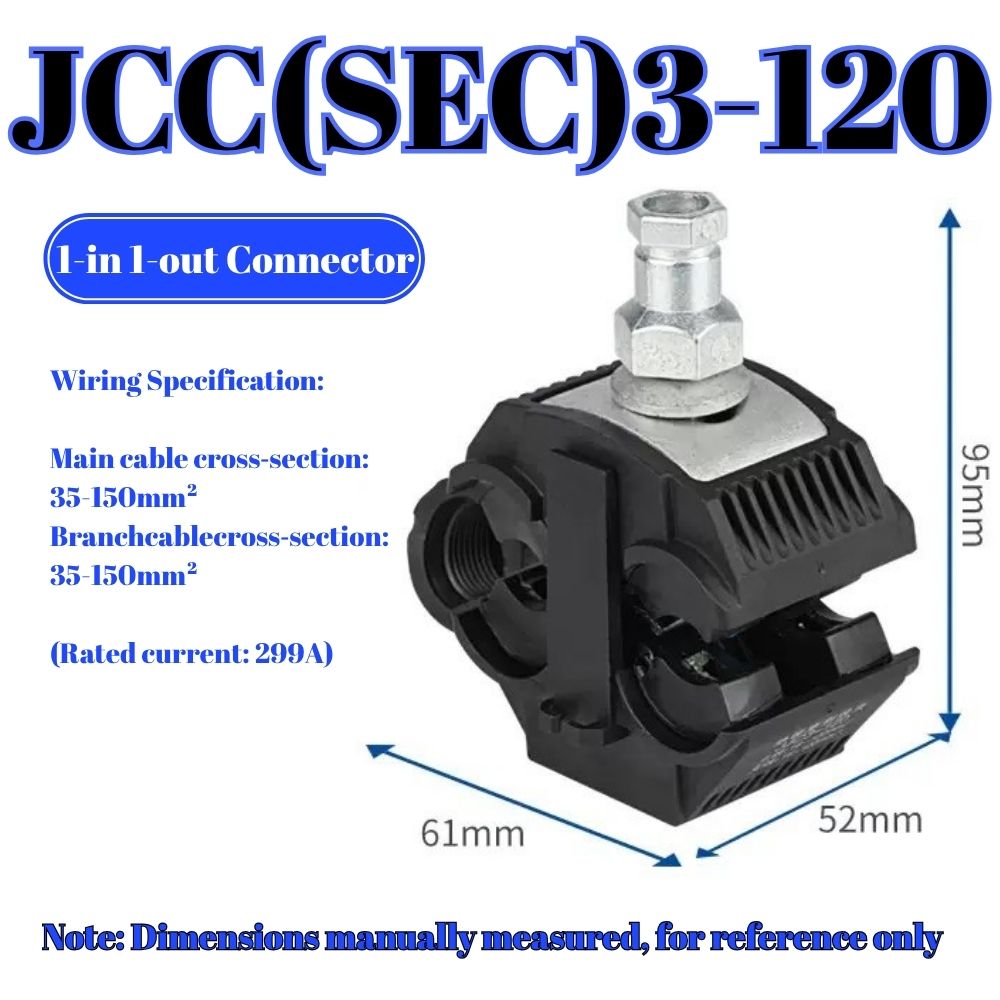

• Main conductor: 16–400mm² | Branch conductor: 1.5–95mm²

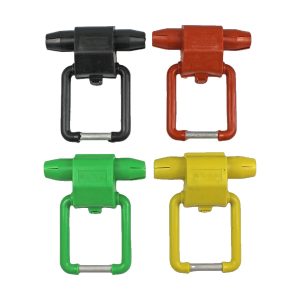

• Types: Standard, fire-resistant, test & grounding
• Rated voltage: 0.6/1kV, 10kV

Applications Overhead distribution lines & street lighting; building wiring and solar PV grid connections; temporary power supply and grid renovation; underground cable vaults and ring main units.

Custom conductor sizes, upgraded waterproof ratings, logo printing and special blade materials are available. Contact us for the full datasheet and professional selection guidance.
