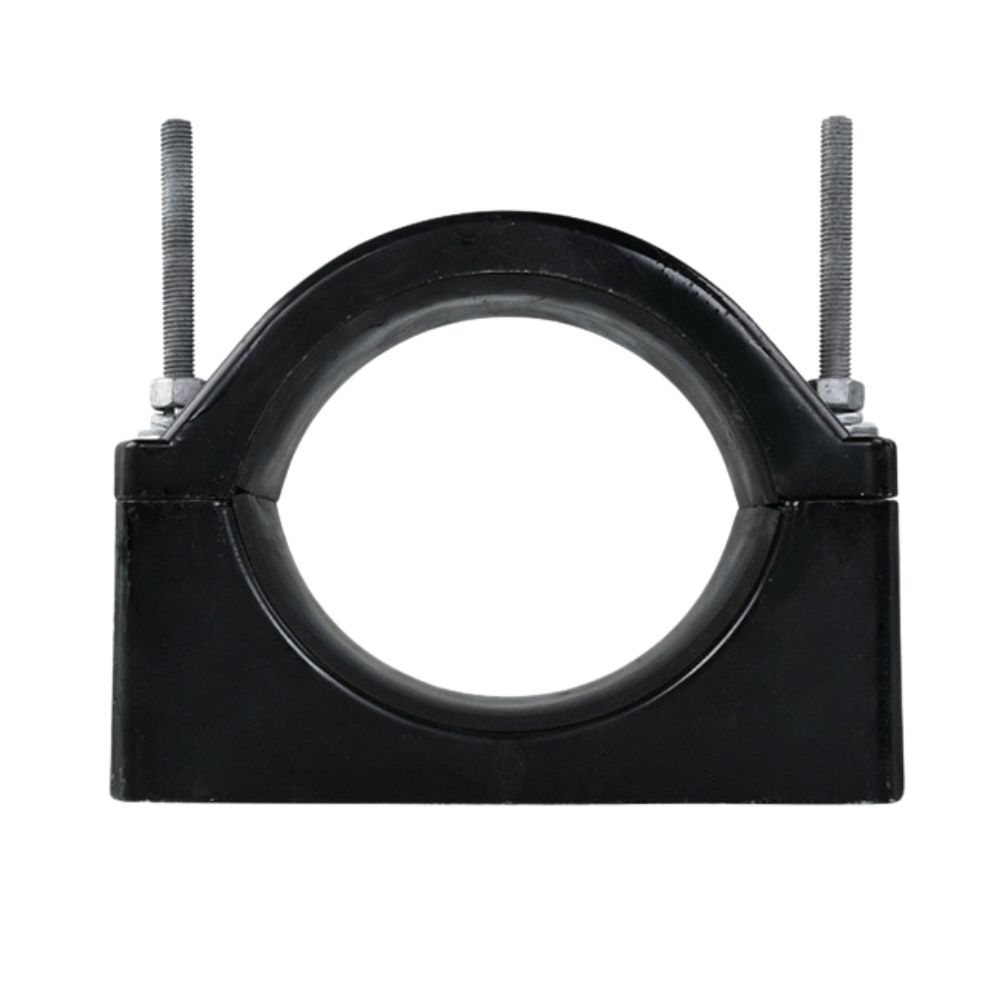

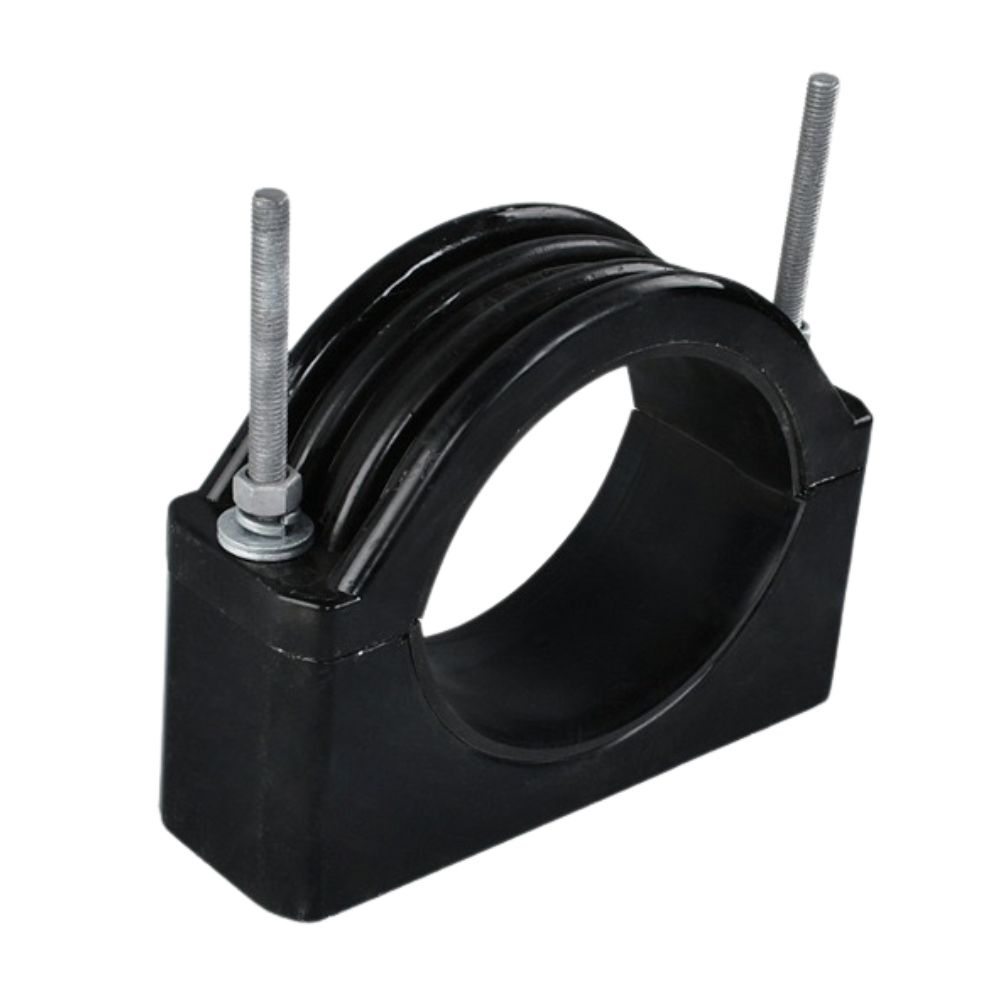

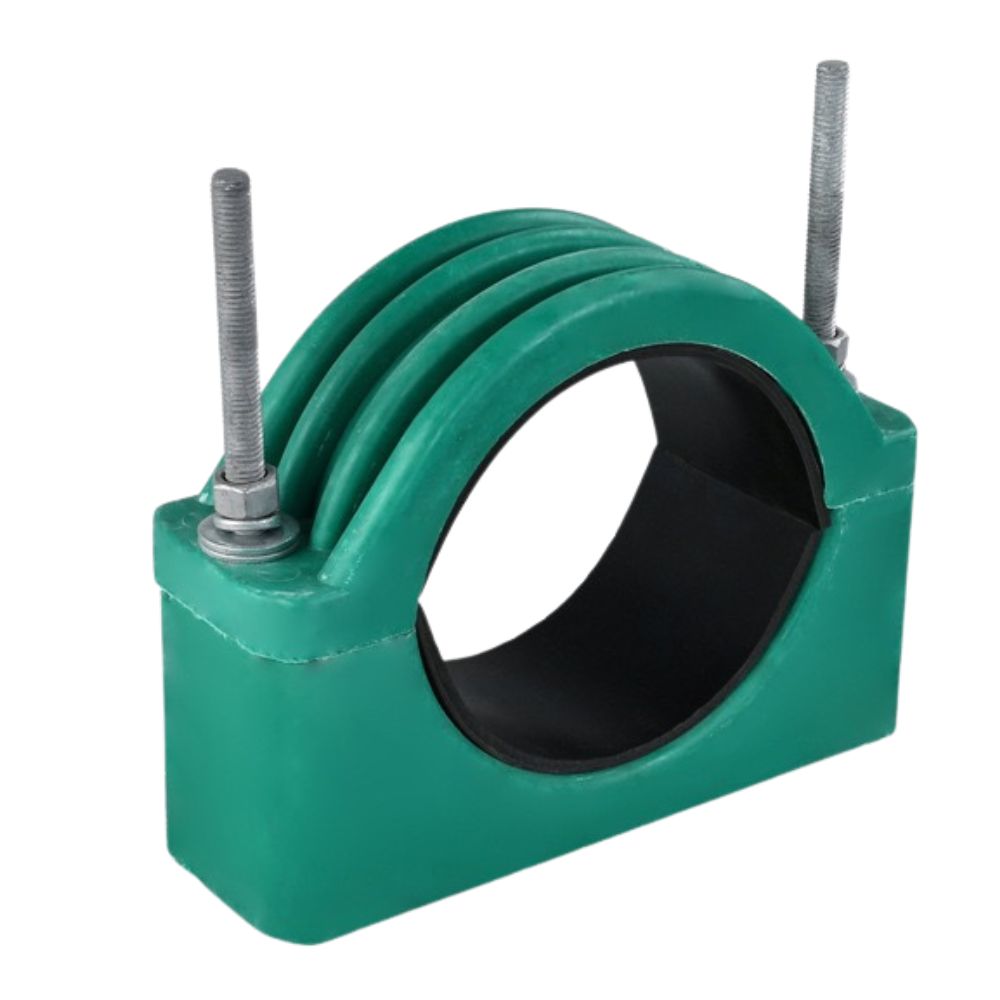

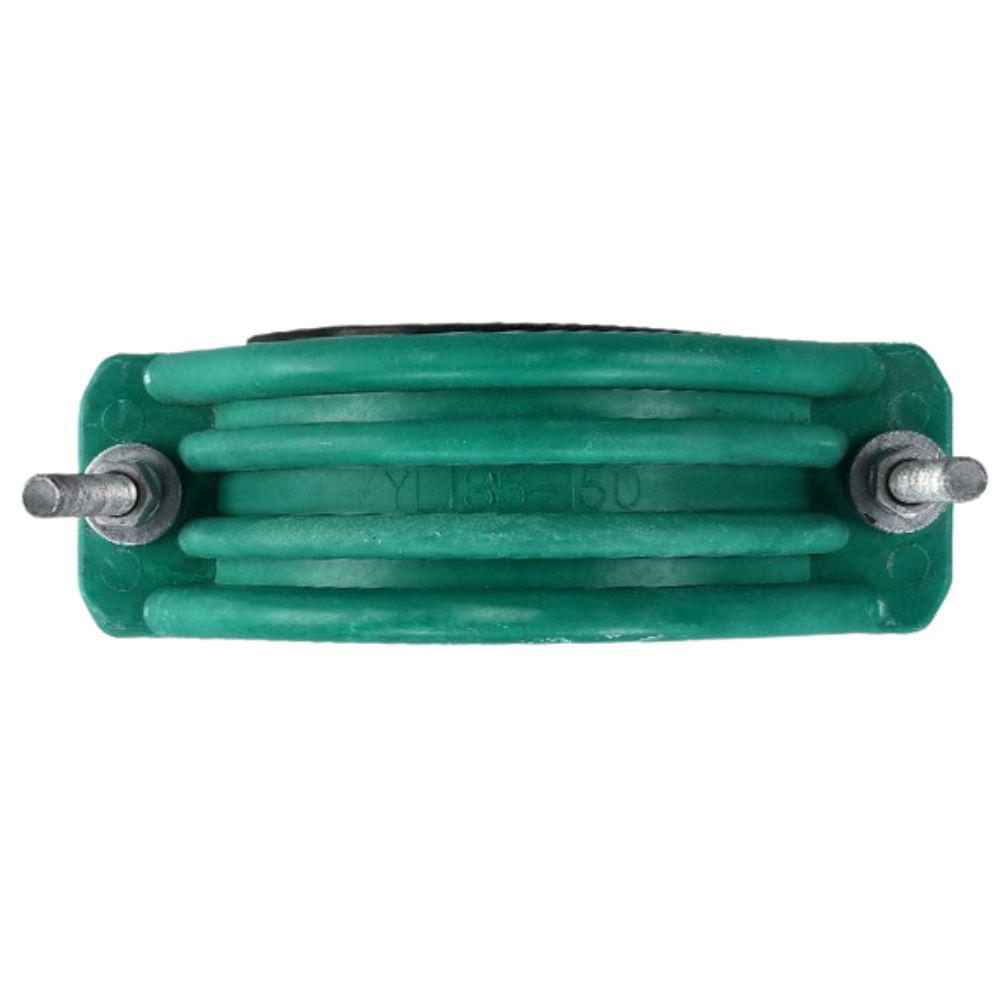

The JGW series FRP composite cable cleats offer a full range of nine models (JGW-1 through JGW-9) to cover cable diameters from small distribution cables to large transmission cables. Molded from fiberglass-reinforced polymer, these cleats combine high mechanical strength with full electrical insulation and corrosion resistance, making them a versatile and durable choice for modern cable management.

Key Features

• Nine Model Sizes — JGW-1 to JGW-9 cover a wide range of cable outer diameters, matching nearly all common 10kV–110kV power cables.
• Non-Magnetic & Insulating — FRP material generates no eddy-current loss and provides electrical isolation, safe for single-core and multi-core circuits.
• Superior Corrosion Resistance — Immune to rust, salt spray, acids and alkalis; outlasts metal cleats in harsh underground and industrial environments.
• High Strength & Toughness — Withstands short-circuit electrodynamic forces, impact and long-term load without cracking or deformation.
• Integral Rubber Lining — Molded EPDM liner grips the cable, protects the sheath and dampens vibration.
• Flame Retardant — FRP material is self-extinguishing, meeting cable trench fire safety requirements.
• Lightweight — Easy to handle and install, reducing labor cost on long cable routes.

Specifications

• Material: FRP composite + EPDM liner + 304 stainless steel bolts
• Models: JGW-1 ~ JGW-9
• Voltage class: 10kV–110kV
• Cable diameter: Φ30mm–Φ180mm (across range)

Applications Cable trenches, tunnels and shafts; substations and switching stations; power plants; petrochemical and metallurgical plants; urban underground utility corridors.

Custom drilling, bracket mounting and special flame-retardant grades available.
